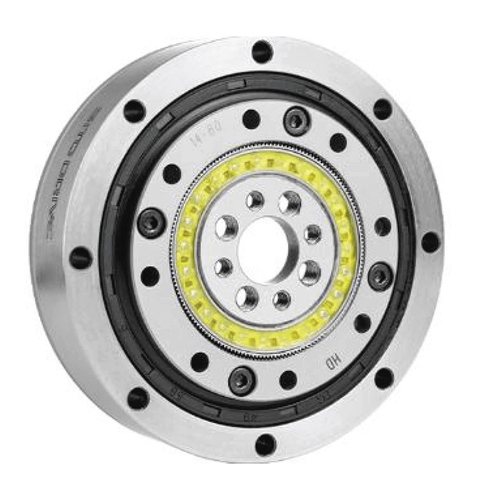

HD-14 Harmonic Gear Reducer 50:1

✔️ Balanced Torque Strain Wave Gear for Accurate Motion Control

The HD-14 50:1 harmonic gear reducer is designed for systems that require increased torque while maintaining smooth and accurate motion. Using only the table specifications, this reducer supports stable output for robotics and servo driven automation.

✅ Gear ratio: 50:1
✅ Rated torque at 2000 rpm: 4.5 Nm
✅ Limit for repeated peak torque: 13 Nm
✅ Limit for average torque: 6.8 Nm
✅ Limit for momentary peak torque: 25 Nm
✅ Maximum input speed: 8500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.021 x10^4 kgm^2
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 How does a mid ratio harmonic gear reducer improve robotic joint performance?

A mid ratio reducer balances speed and torque, allowing joints to move smoothly while maintaining positioning accuracy under load.

This 50:1 version provides dependable torque handling with clean, low backlash motion.
