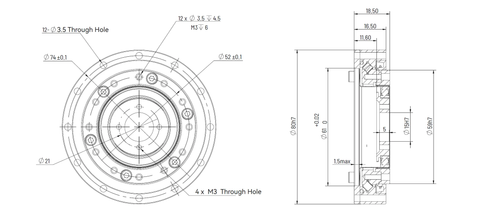

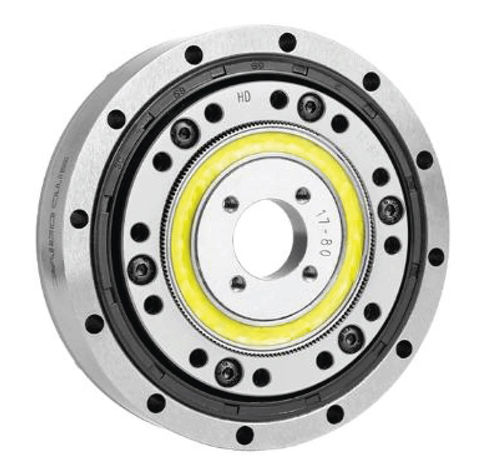

HD-17 Harmonic Gear Reducer 100:1

✔️ High Reduction Strain Wave Gear for Precision Motion Control

The HD-17 100:1 harmonic gear reducer is designed for systems that demand high torque output and very fine motion resolution. Using only the table specifications, this reducer delivers strong torque performance with smooth operation and extremely low backlash.

✅ Gear ratio: 100:1
✅ Rated torque at 2000 rpm: 16 Nm
✅ Limit for repeated peak torque: 37 Nm
✅ Limit for average torque: 27.8 Nm
✅ Limit for momentary peak torque: 71 Nm
✅ Maximum input speed: 7000 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.054 x10^4 kgm^2
✅ Backlash: ≤10 arcsec
✅ Delivery time 10 to 15 days

💡 What makes a 100:1 harmonic gear reducer ideal for high precision robotic systems?

A 100:1 harmonic reducer enables very fine output motion and high torque density, making it ideal for precision robotics and automation.

This 100:1 version delivers powerful torque output with smooth, low-backlash motion.
