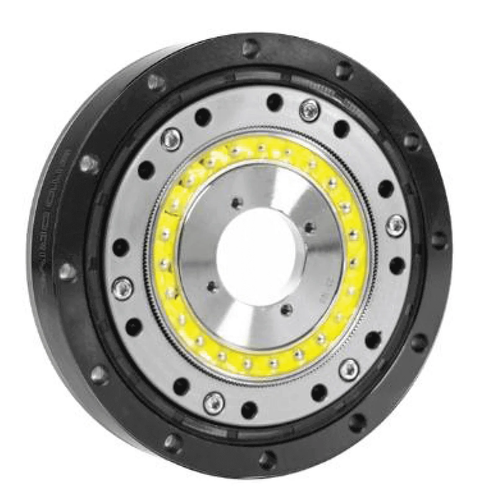

HD-25 Harmonic Gear Reducer 100:1

✔️ High Reduction Strain Wave Gear for Precision Motion Control

The HD-25 100:1 harmonic gear reducer is designed for systems that demand very high torque output and fine motion resolution. Using only the table specifications, this reducer provides stable torque delivery with smooth performance and very low backlash.

✅ Gear ratio: 100:1
✅ Rated torque at 2000 rpm: 48 Nm
✅ Limit for repeated peak torque: 110 Nm
✅ Limit for average torque: 75 Nm
✅ Limit for momentary peak torque: 184 Nm
✅ Maximum input speed: 5600 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.282 x10^4 kgm^2
✅ Backlash: ≤10 arcsec
✅ Delivery time 10 to 15 days

💡 What makes a 100:1 harmonic gear reducer ideal for heavy precision automation?

A 100:1 harmonic reducer allows extremely fine output motion and high torque density, making it ideal for heavy load precision automation and robotics.

This 100:1 version delivers powerful torque output with smooth, low-backlash motion.
