12" Linear Motion CNC Router Module - Heavy Duty Ballscrew - 5mm Lead
UPC: 00193019335352

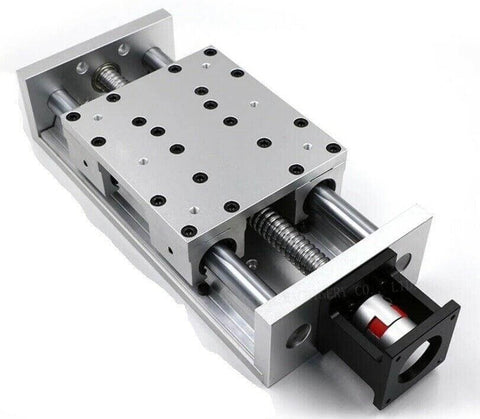

Heavy Duty CNC Linear Motion Module
✔️ 12-Inch Stroke with 5mm Ballscrew Lead
Designed for high-precision movement, this 12-inch linear motion module features a 2005 ballscrew with a 5mm lead, offering controlled, low-speed travel perfect for CNC routers, 3D printers, and robotic platforms. The dual shaft design and SBR20 guideways deliver extra support and accuracy for tight-tolerance tasks.
✅ Travel Stroke: 12 inches (approx. 305mm)
✅ Ballscrew Type: 2005 (5mm lead)
✅ Guideway System: SBR20 for stable linear travel
✅ Compatible Motors: 57/86 stepper motors and 100W-400W servo motors
✅ Structure: Dual shaft for rigidity and balance
✅ Accuracy Grade: C7
✅ Max Speed: 250mm/sec
✅ Pack Size: 1 CNC motion module
Dimensions Table:
| Spec | Value |
|---|---|
| Stroke | 12 inches (305mm) |
| Ballscrew Lead | 5mm |
| Ballscrew Type | 2005 |
| Guideway Type | SBR20 |
| Accuracy Grade | C7 |
| Max Speed | 250mm/sec |
💡 When is a low-lead ballscrew ideal in CNC applications?
A smaller lead, like 5mm, delivers finer motion control and increased torque, making it ideal for applications that demand high precision and stability - like milling, engraving, or robotic arms handling delicate work.
If precision is your priority, this module is your move - add it to your system and keep things perfectly on track!
