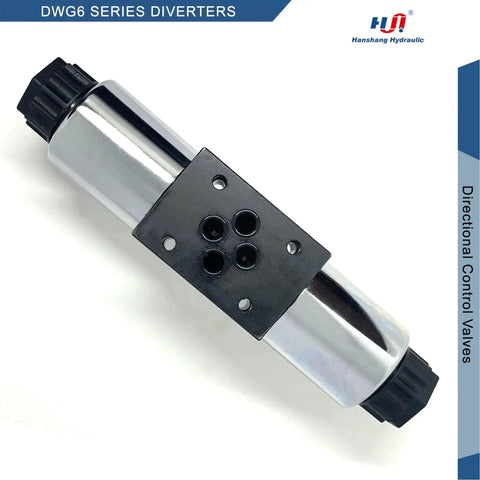

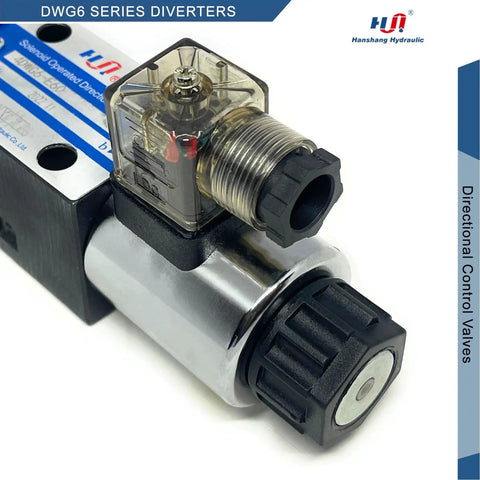

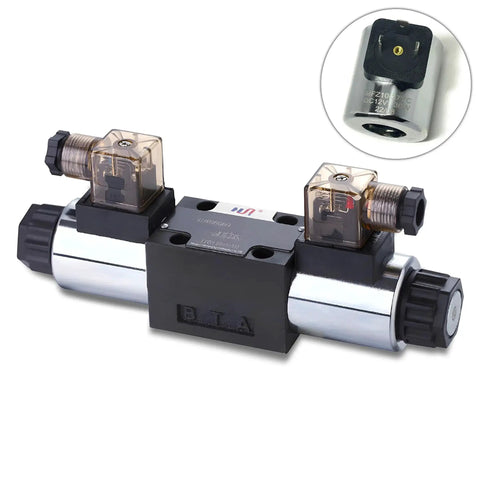

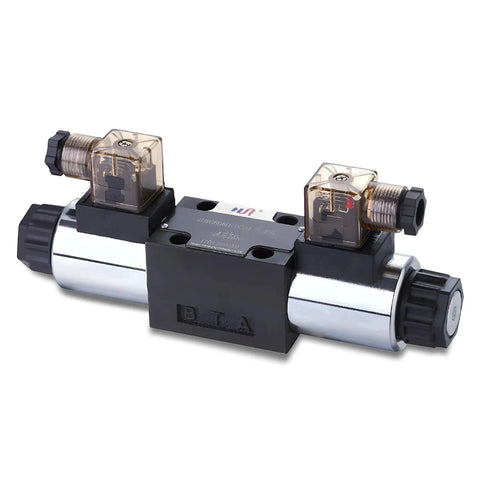

Heavy Duty 12V DC Hydraulic Directional Control Valve Solenoid NG6 Size 6 3 Position 4 Way 4 Port Electric Spool E Spool For Mobile Equipment Industrial Machinery Sub Plate Or Manifold Compatible High Flow 60 LPM And Quick Mounting Options

Heavy Duty 12V DC Hydraulic Directional Valve, 60 LPM - Single Unit

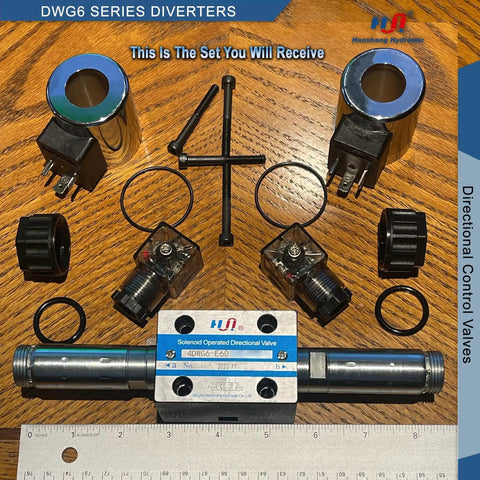

✔️ DC12V, 60 L/min max flow, 3-position 4-way NG6 valve (1pc)

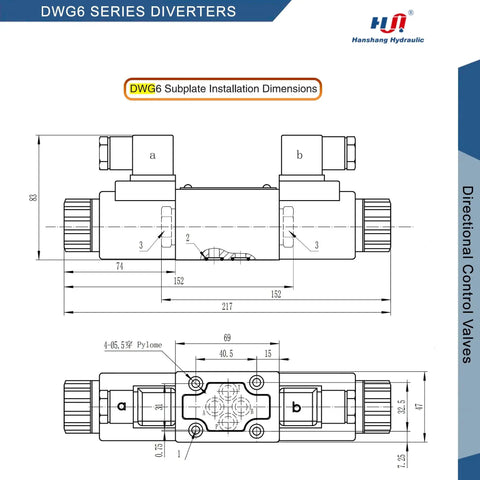

This heavy-duty hydraulic valve controls directional flow in mobile equipment and industrial machinery. It is designed for sub-plates or manifolds in NG6 or D03 series systems, delivering reliable high-flow operation in rugged environments.

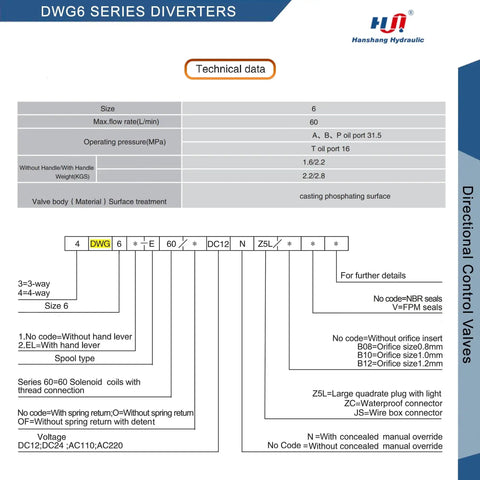

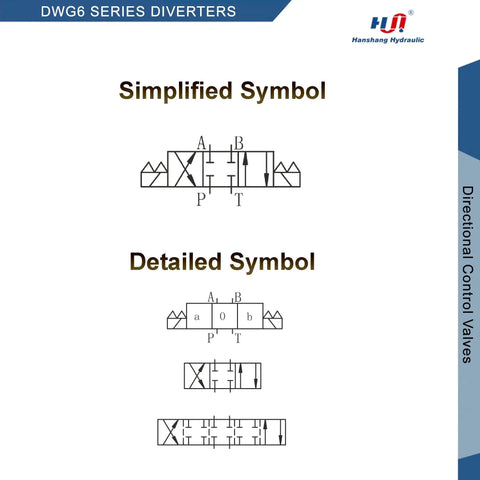

✅ Size: NG6, 3-position, 4-way, 4-port

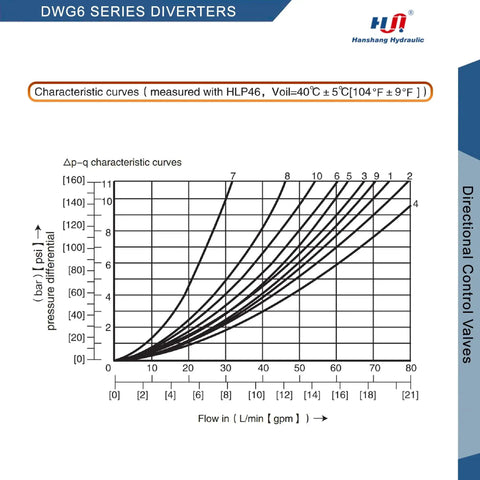

✅ Max flow: 60 L/min
✅ Voltage: DC 12V, solenoid power 30W
✅ Operating pressure: A/B/P 31.5 MPa, T 16 MPa
✅ Weight (single head, without handle): 1.6 kg; with handle: 2.2 kg
✅ Weight (double head, without handle): 2.2 kg; with handle: 2.8 kg
✅ Valve body: cast with phosphating surface
✅ Replacements: DSG DGV-3, D03S-2, 4WE6, VSD03M, RPE3, Q03, SWH-G02 (verify spool type and voltage)

💡 What is a hydraulic directional control valve used for in heavy equipment and automation? This handy device helps regulate hydraulic flow in mobile machinery, enabling precise actuator control. - hydraulic directional control valve basics for mobile equipment - 4-way 3-position operation explained - NG6 sub-plate compatibility and high flow characteristics - selecting a 12V DC solenoid valve for industrial use
