Heavy Duty 12V DC Linear Actuator With 2 Inch Stroke SOViK Beefy 750N Load Ready To Lift Up To 165 Lbs IP54 Rated Built In Limit Switch 6mm Mount Holes No Load Speed 10 Mm Per Second Retracted 155mm Extended 205mm

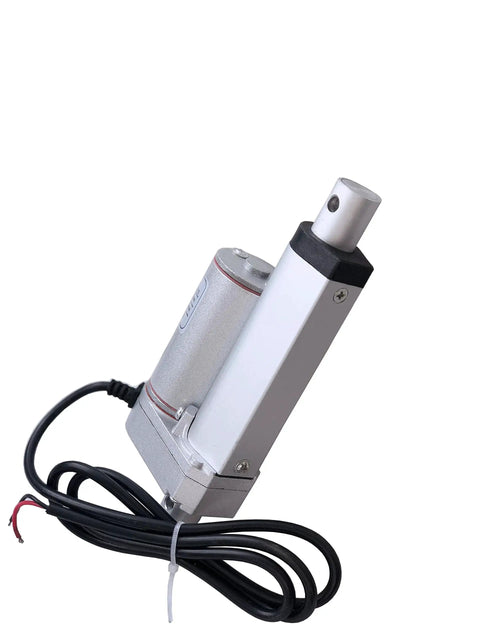

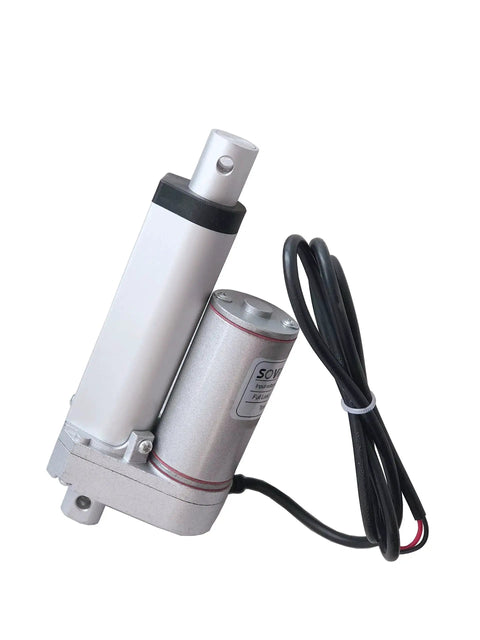

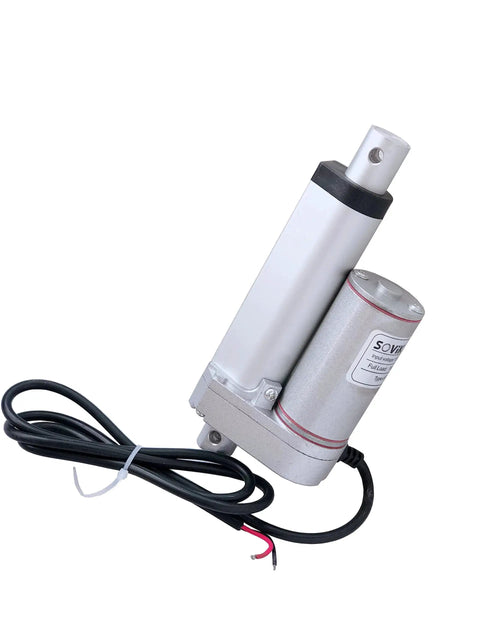

Heavy Duty 12V DC Linear Actuator with 2in Stroke
✔️ 750N max load, 10 mm/s, IP54, 6mm mounts, built-in limit switch

Heavy-duty 12V DC linear actuator designed for compact, rugged lifting tasks. This single-unit actuator is commonly used in automotive, industrial, and DIY projects needing precise motion, built-in limit switch, and IP54 protection. It features a 2 inch stroke, 6mm mounting holes, and a max current of 3A.

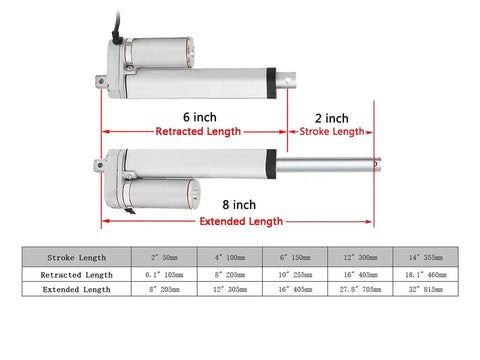

✅ Stroke: 2 in (50.8 mm)
✅ Retracted length: 6.1 in (155 mm)
✅ Extended length: 8.0 in (203.2 mm)
✅ Max load: 165 lb (750 N)
✅ No-load speed: 10 mm/s
✅ IP54 protection; max current 3 A

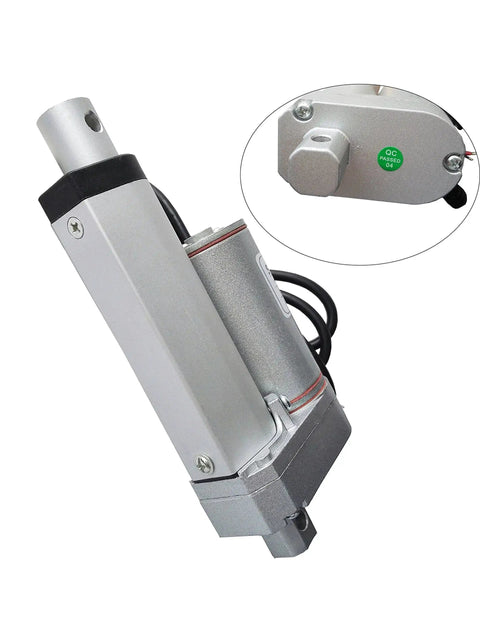

✅ Mount holes: 6 mm diameter

💡 What is a 12V DC linear actuator used for in rugged lifting applications? This handy device is commonly used for automated hatches, lids, panels, or small gates. - Handy for raising panels on hobby frames and workshop equipment - Great for adjustable mounts, enclosures, and small gates in workshops - Built-in limit switch and IP54 protection help ensure repeatable positions in dusty or damp spots
