24" Linear Motion CNC Router Module - Heavy Duty Ballscrew - 20mm Lead
UPC: 00193019335376

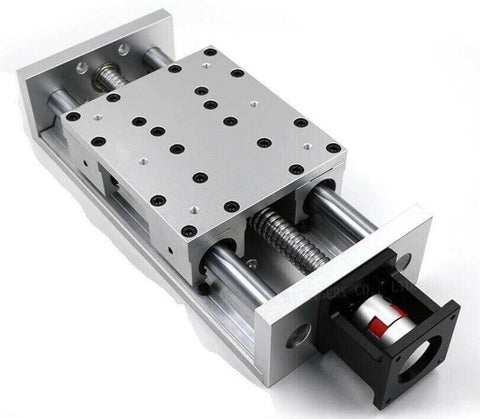

Heavy Duty CNC Linear Motion Module
✔️ 24-Inch Stroke with 20mm Ballscrew Lead
Engineered for speed, this 24-inch CNC linear motion module uses a 2020 ballscrew with a 20mm lead - perfect for rapid movement in high-efficiency CNC routers, robotics, and automation systems. With SBR20 linear rails and dual shaft support, it handles fast motion without compromising stability or precision.
âś… Travel Stroke: 24 inches (approx. 610mm)
âś… Ballscrew Type: 2020 (20mm lead)
âś… Linear Guideways: SBR20 for heavy-duty support
âś… Compatible Motors: 57/86 stepper motors and 100W-400W servo motors
âś… Structural Design: Dual shaft for improved rigidity
âś… Accuracy Grade: C7
âś… Maximum Speed: 1,000mm/sec
âś… Pack Size: 1 CNC linear module
Dimensions Table:
| Spec | Value |
|---|---|
| Stroke | 24 inches (610mm) |
| Ballscrew Lead | 20mm |
| Ballscrew Type | 2020 |
| Guideway Type | SBR20 |
| Accuracy Grade | C7 |
| Max Speed | 1,000mm/sec |
đź’ˇ What is the benefit of using a 20mm lead ballscrew in CNC automation?
A 20mm lead delivers ultra-fast linear travel, making it ideal for CNC and robotic systems that require quick movements with reduced cycle times. It’s especially useful when rapid positioning is more important than high torque.
Ready to speed things up? This high-velocity module is the upgrade your system’s been waiting for - go ahead and make it fly!
