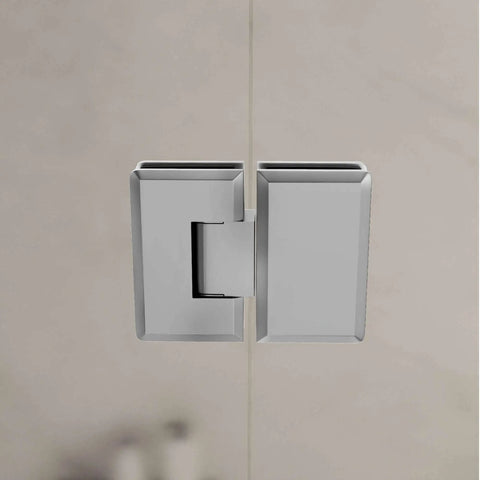

Heavy Duty Adjustable Glass To Glass Shower Door Hinge 180 Degree Solid Forged Brass With Satin Chrome Finish Fits Three Eighths Inch And One Half Inch Glass Thickness And Four Seven Sixteenths Inch Overall Width Brixwell
UPC:
✔️ Adjusts up to 30 degrees in/out; fits 3/8 in and 1/2 in glass

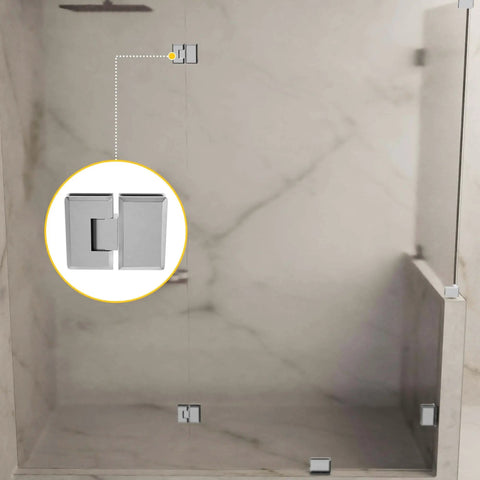

This heavy-duty hinge is designed for frameless shower enclosures and is typically sold as a pair. Made from solid forged brass with a satin chrome finish, it pairs with glass-to-glass fittings and other shower door hardware for a clean, durable look. Designed to support tempered glass and align post-install, it’s a practical choice for precise door movement and solid performance in modern showers.

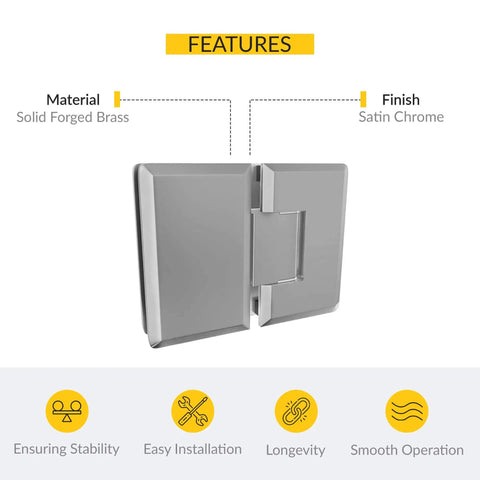

✅ Solid forged brass body with satin chrome finish✅ Glass thickness compatibility: 3/8 in (10 mm) or 1/2 in (12 mm) tempered glass
✅ Self-centering dual return springs for smooth operation
✅ Adjustable closing position up to 30° inward/outward after install
✅ Maximum hinge weight rating: 40 lbs per hinge; pair up to 80 lbs (30" width); triple up to 120 lbs (36" width)
✅ Includes stainless steel clamp screws and hex wrench for easy install

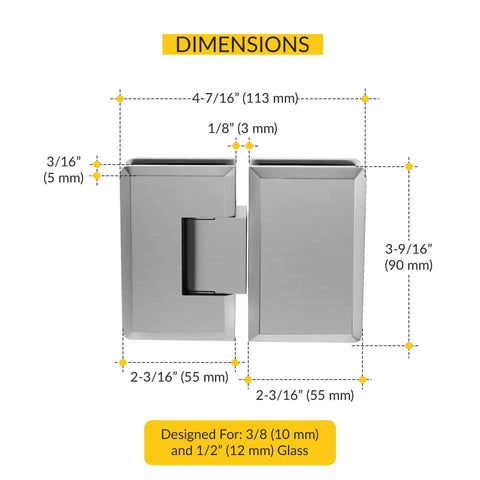

✅ Overall width 4-7/16 in; plate width 2-3/16 in; plate height 3-9/16 in; plate thickness 3/16 in per side; center gap 1/8 in
| Dimension | Inches | Millimeters |
|---|---|---|
| Overall width | 4-7/16 in | 112.7 mm |
| Plate width (each) | 2-3/16 in | 55.6 mm |
| Plate height | 3-9/16 in | 90.5 mm |
| Plate thickness (each) | 3/16 in | 4.76 mm |
| Center gap | 1/8 in | 3.18 mm |
| Glass thickness compatibility | 3/8 in or 1/2 in | 9.53 mm or 12.70 mm |
Q&A for SEO:
💡 What is a heavy duty glass-to-glass shower hinge used for? This handy piece helps secure frameless shower doors and allows post-install alignment for a tight seal.
- Suitable for frameless shower enclosures and glass-to-glass fittings
- Post-install adjustment up to 30° for precise door closing
- Solid forged brass with satin chrome finish for durability
- Compatible with 3/8 in or 1/2 in tempered glass
