Heavy Duty Changeover Switch SYW28 20 With Five Positions And Eight Terminals Universal Rotary Cam Selector Latching 550V 20A Industrial Grade Load Control Easy Mounting With Flame Retardant Housing

Heavy-Duty SYW28-20 Changeover Switch for Industrial Panels

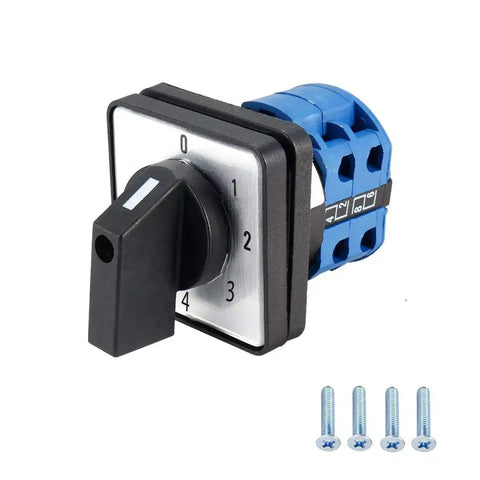

✔️ 5 positions, 8 terminals, latching, Ui 550V Ith 20A, 1x switch + 4 screws

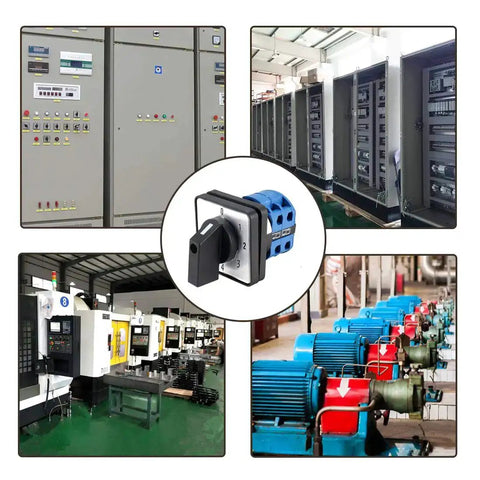

This heavy-duty changeover switch is a 5-position, 8-terminal rotary selector built for industrial control panels and motor circuits. It’s designed to smoothly switch between two control circuits in power, speed, and induction motor applications, with a flame-retardant housing for safer panel operation.

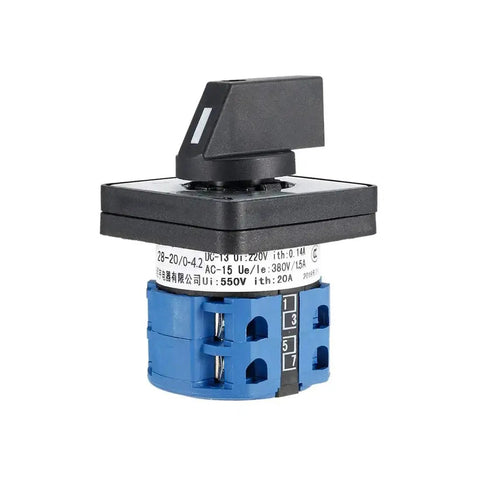

✅ Model: SYW28-20.0-4.2; 5 positions, 8 terminals; latching; Ui 550V Ith 20A

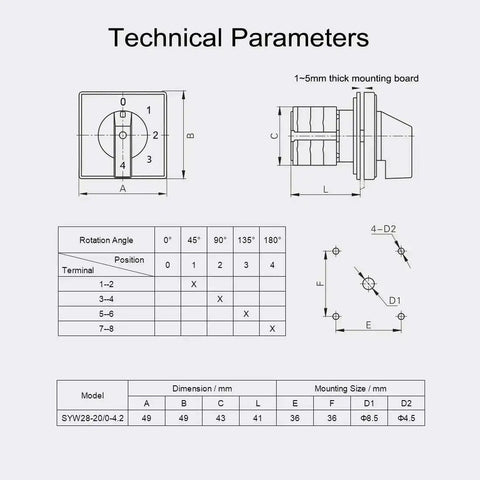

✅ Mounting: 36mm x 36mm hole spacing; body 49mm x 49mm x 100mm (1.42in x 1.42in; 1.93in x 1.93in; 3.94in)
✅ Rating: DC-13: Ui 220V Ith 0.14A; AC-15: Ue 380V Ie 1.5A
✅ Includes: 1 x Switch, 4 x Screws; flame-retardant housing

💡 What is a heavy-duty changeover switch used for in industrial control panels?

This handy device lets you switch between two control circuits in electrical panels and motor circuits.

• 5-position latching selector supports easy circuit selection

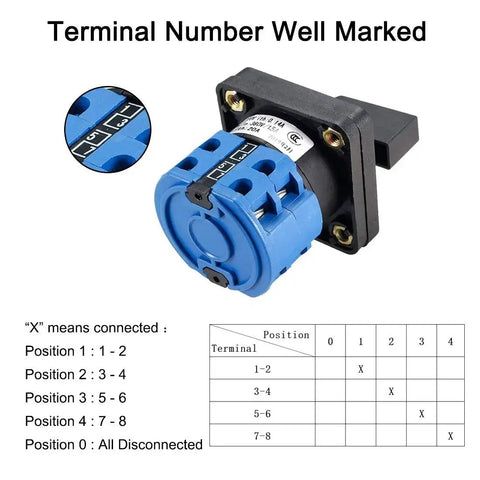

• 8 terminals enable flexible wiring for complex control schemes
• Ui 550V Ith 20A rating provides reliable load handling
• Flame-retardant housing enhances safety in enclosures
