Heavy Duty Double Acting Hydraulic Cylinder With 2 Inch Bore And 8 Inch Stroke Swivel Eye Universal Fit 3500 PSI Rated 9400 Lb Load Welded Body SAE 6 Ports O Ring Boss By Magister Hydraulics

Heavy-duty hydraulic cylinder with 2 in bore and 8 in stroke
✔️ 2 in bore (50.8 mm), 8 in stroke (203.2 mm), 18-26 in travel

This heavy-duty double-acting hydraulic cylinder is designed for construction equipment and industrial machinery. It features a welded body with a swivel eye universal fit, SAE 6 ports with O-ring boss fittings, and 1 in pin holes, delivering a robust 3500 psi rating and a 9,400 lb load capacity. Made in Europe with a 2-year warranty.

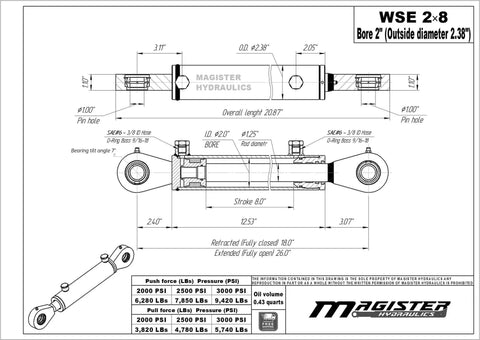

✅ 2 in bore (outer dia 2.38 in / 60.5 mm), 8 in stroke (203.2 mm), 1.25 in rod dia (31.75 mm)

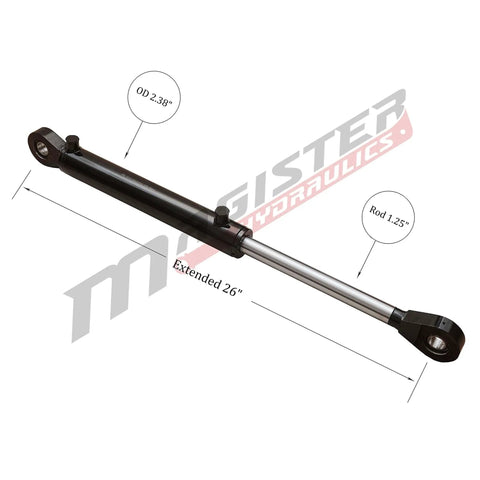

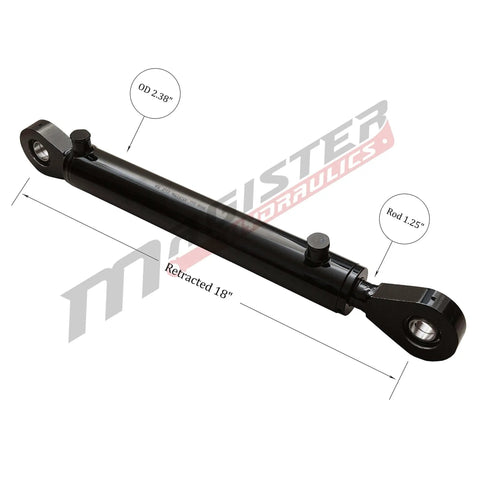

✅ Retracted length 18 in (457.2 mm), extended length 26 in (660.4 mm)

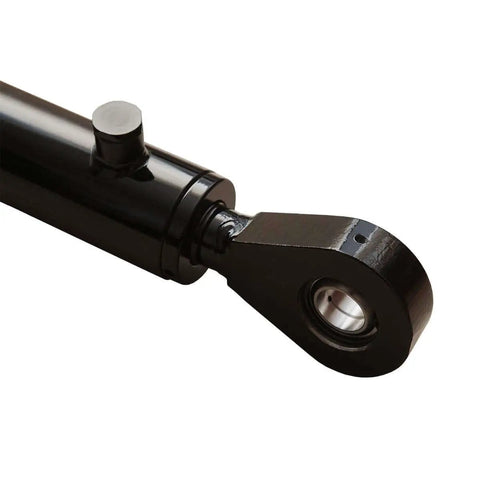

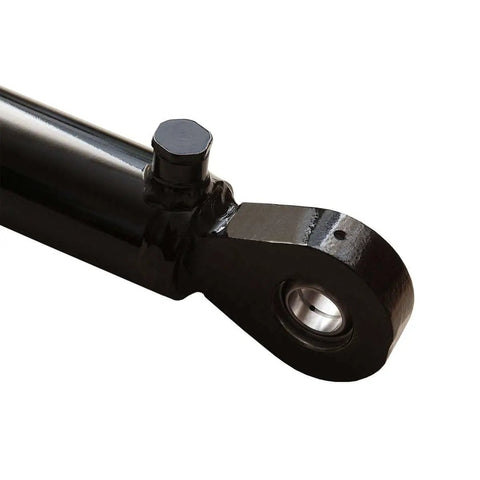

✅ Welded body, swivel eye universal fit, pin holes 1 in
✅ Rated to 3500 psi, load capacity 9,400 lb

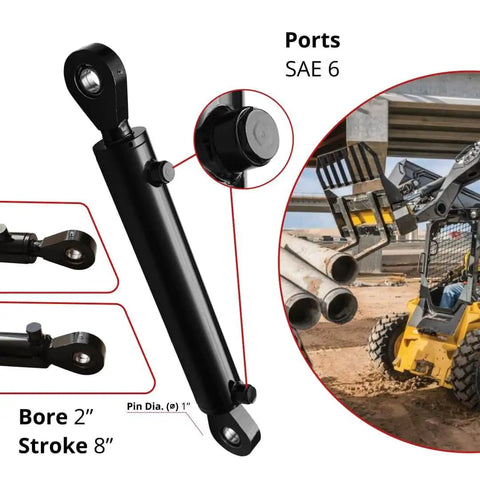

✅ SAE 6 ports (O-ring boss) for plumbing compatibility

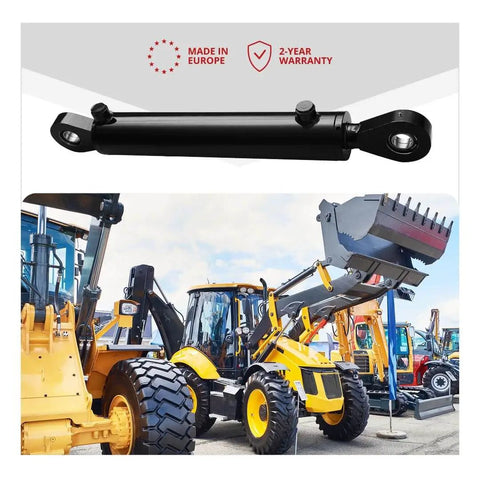

✅ Double acting operation; single unit design; Made in Europe; 2-year warranty

💡 What is a hydraulic cylinder used for in heavy machinery?
This handy device powers linear actuation for lifting, pushing, and pulling on equipment.
- handy for lifting, pushing, actuating hydraulic arms in heavy equipment
- compatible with SAE 6 ports and O-ring boss fittings
- delivers 3500 psi working pressure and up to 9400 lb load for tough tasks
