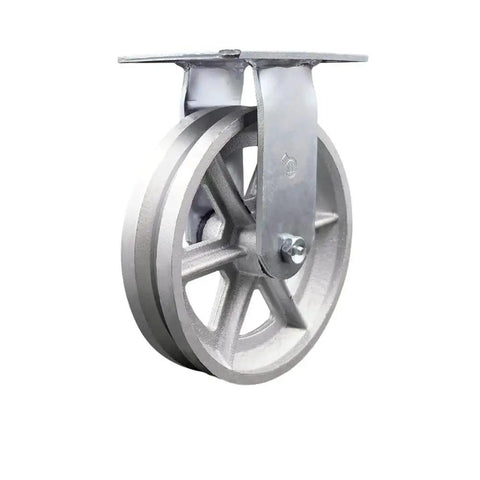

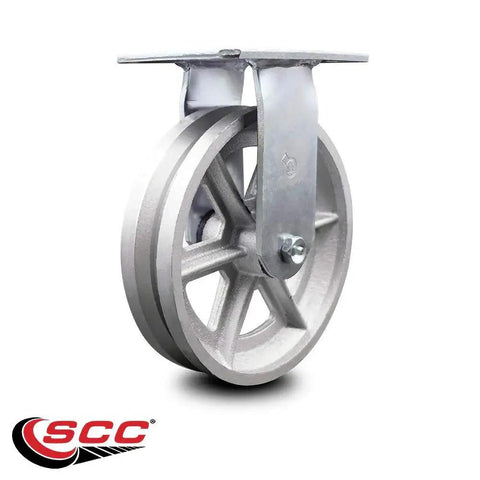

Heavy Duty Large Top Plate V Groove Semi Steel Swivel Caster With An 8 Inch By 2 Inch Silver Wheel And 1250 Lb Capacity Per Caster For Industrial Carts Dollies And Material Handling Workhorse By Service Caster Brand

Heavy Duty 8-Inch V Groove Caster for 1250 lb per Unit
✔️ 8 inch wheel, 1250 lb cap per caster, top plate 4.5 x 6.25 in

This heavy-duty top-plate V-groove caster is designed for industrial carts, dollies, and material handling in warehouses. The 8 inch glass-filled semi-steel wheel runs on 45-degree tracks or on flat surfaces, while the plate can be bolted or welded for a secure mount. Pack size: 1 per order.

✅ 8 in diameter x 2 in wide glass-filled semi-steel V-groove wheel
✅ 1250 lb weight capacity per caster

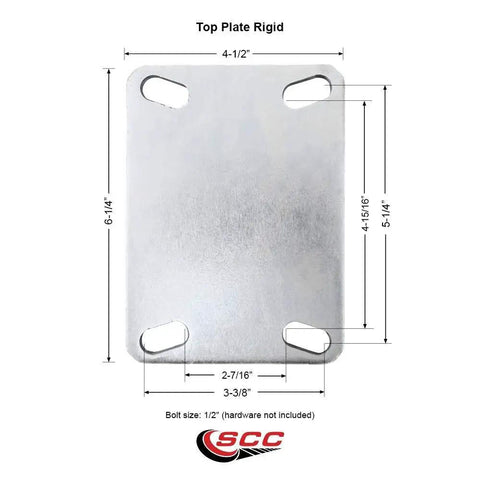

✅ Top plate 4-1/2 in x 6-1/4 in with mounting holes 2-7/16 x 4-15/16 in to 3-3/8 x 5-1/4 in, bolt or weld on
✅ Mounting height for 8 in wheel: 9-1/2 in
✅ Brakes: SLB side lock and BSL bolt-on swivel lock for full immobilization
✅ Temperature rating up to 600°F; abrasion-resistant semi-steel wheel

💡 What is the best use case for an 8 inch V-groove caster in heavy-duty material handling?

These handy casters are built for tough environments where loads ride on rails or flat floors, offering reliable brakes and easy tracking.

- handy on tracked warehouse tracks and flat floors - ideal for industrial carts, dollies, platform trucks, and freight terminals - brake options allow immobilization on swivels and wheels - supports up to 1250 lbs per caster
