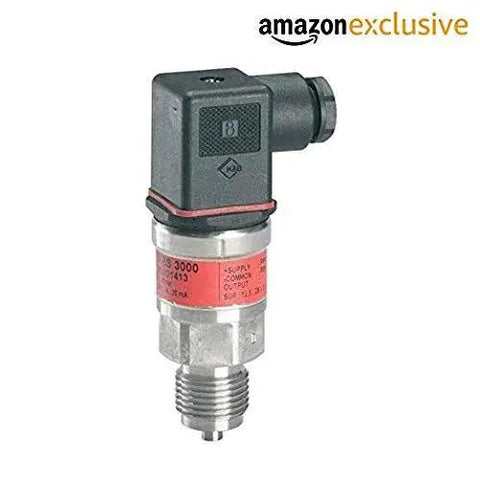

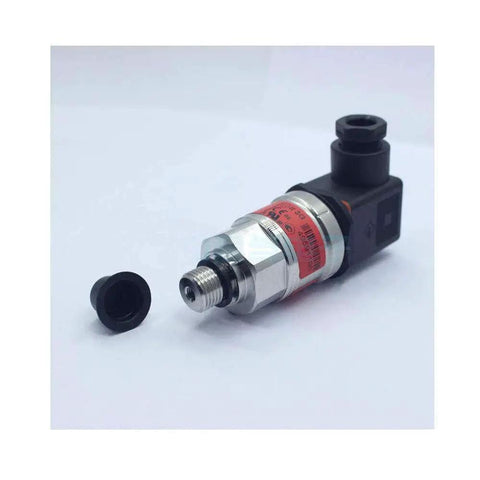

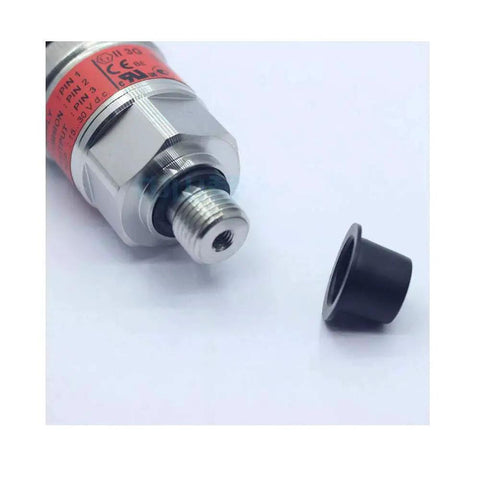

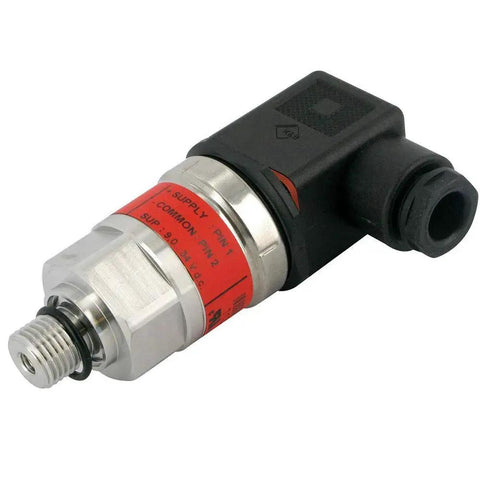

Heavy Duty Pressure Transmitter For Industrial Hydraulic And HVAC Applications With 0 To 150 PSI Range G Quarter Thread And 4 To 20 Milliamp Output Model MBS 3000 Pack Of 1 Delivers Accurate Readings And Beefy Reliability In Harsh Environments

Heavy Duty Pressure Transmitter 0-150 PSI, Pack of 1
✔️ 0-150 PSI range, 4-20 mA output, G 1/4 thread, IP65

This rugged pressure transmitter is built for tough industrial environments and is ideal for hydraulic systems, HVAC networks, pumps, and water treatment setups. It delivers a precise 4-20 mA signal for PLC/SCADA interfaces and is temperature compensated with laser calibration for stable readings, even in zones with hazardous atmospheres (ATEX Zone 2).

✅ Measuring range: 0 to 150 PSI
✅ Output signal: 4-20 mA
✅ Pressure connection: G 1/4
✅ Enclosure: IP65 rated
✅ Operating temperature: -40 °C to +85 °C
✅ Accuracy: ≤ ±0.5% FS typ; ≤ ±1% FS max
✅ Hysteresis & repeatability: ≤ ±0.1% FS
✅ Response time: < 4 ms
✅ Overload pressure: 6 × FS up to 1500 bar
✅ Burst pressure: 6 × FS up to 2000 bar
✅ Weight: 0.2-0.3 kg

💡 What is a pressure transmitter used for in hydraulic and HVAC systems? A handy device that converts pressure into an electrical signal for monitoring and control. - Handy for real-time system monitoring - Simplifies integration with PLCs via standardized 4-20 mA output - Rugged construction withstands industrial conditions - Helps optimize performance and maintenance planning
