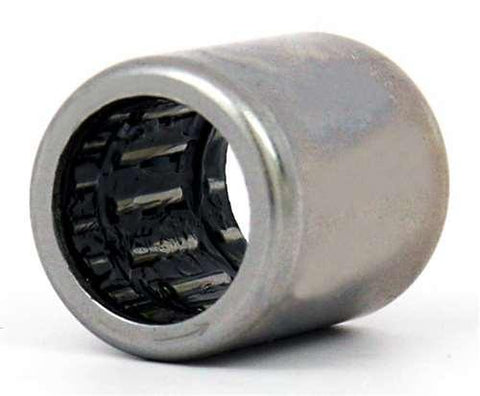

HFL1022 One-Way Needle Bearing/Clutch 10x14x22mm
UPC: 00193019286814
Type: Needle Roller Bearing
Dimensions: 10mm x 14mm x 22mm/Metric
ID (inner diameter)/Bore: 10mm
OD (outer diameter): 14mm
HFL1022 One-Way Needle Roller Bearing
✔️ Shell Type - 10mm x 14mm x 22mm
The HFL1022 is a one-way needle roller bearing with a shell-type design, perfect for indexing systems, backstops, or applications requiring torque transfer in one direction only. Compact, lightweight, and built for precision control.
✅ One-way clutch function for directional rotation
✅ Shell-type construction for low profile installs
✅ Needle rollers for smooth, high-load support
✅ Size: 10mm ID x 14mm OD x 22mm width
✅ Sold as 1 bearing
Dimensions Table (mm):
| Inner Diameter | Outer Diameter | Width |
|---|---|---|
| 10 mm | 14 mm | 22 mm |
💡What is a one-way needle roller bearing used for in mechanical systems?
These clutch-style bearings are super handy when rotation needs to lock in one direction:
-
Used in conveyor systems and index drives
-
Prevents reverse motion in pulleys and gearboxes
-
Ideal for stepper motors, printers, and tools
-
Compact solution for directional torque transfer
Want controlled motion without the bulk? This bearing’s your move. Add it to your cart and get one-way performance in a tiny package.
