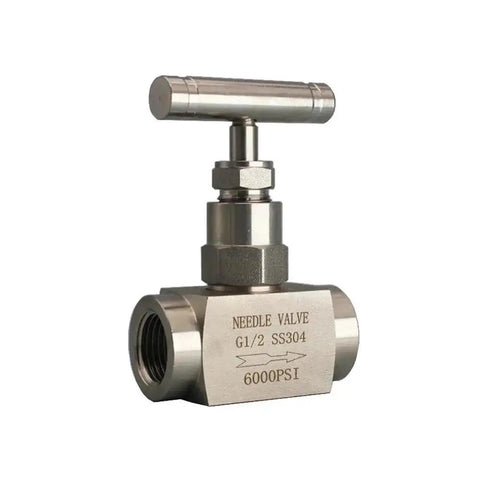

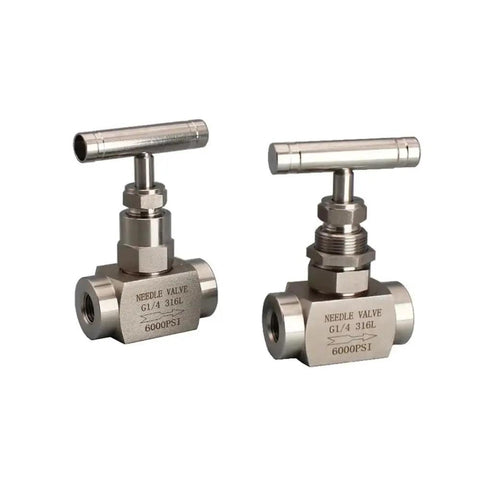

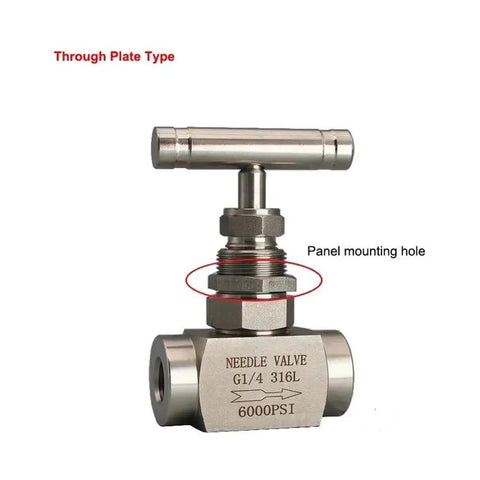

High Pressure Needle Valve Made From 304 316L Stainless Steel Through Plate Type With Female Threads For Instrumentation Systems Available In Sizes One Eighth To One Inch Provides Precise Flow Control Leak Tight Sealing And Stable Pressure Shncuonp

Single high-pressure stainless needle valve for systems
✔️ 55 char Spec: Max 420 bar, 304/316L stainless steel, BSP female threads, 1/8 to 1 in

Through-plate high pressure needle valve built from 304/316L stainless steel, designed for precise flow control in instrumentation systems. This valve is commonly used in hydraulic, pneumatic, water, oil, and gas lines where leak-tight sealing and stable pressure are essential.

✅ Material: 304/316L stainless steel

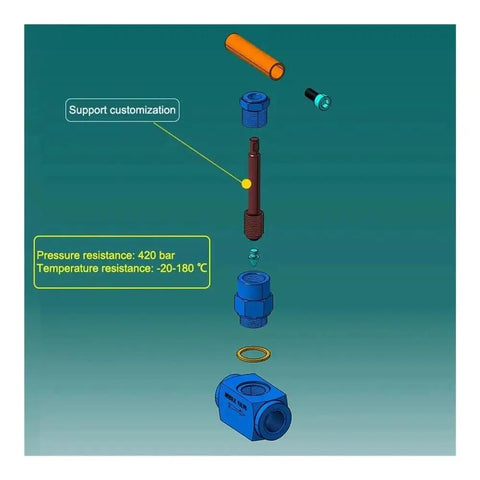

✅ Max working pressure: 420 bar
✅ Temperature range: -20 to 180°C
✅ Media: water, oil, gas

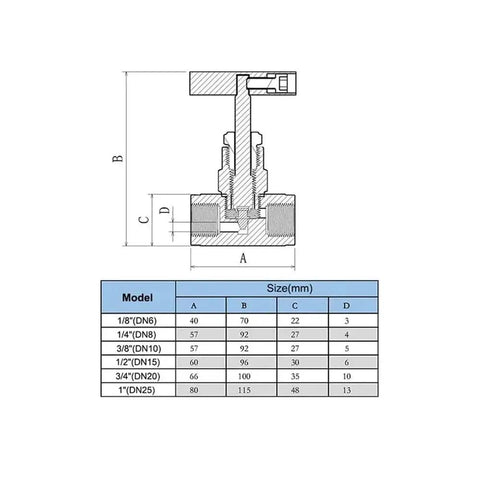

✅ Threads and sizes: BSP female; port options 1/8 to 1 in, M16x1.5, M20x1.5

💡 What is a high pressure needle valve used for in instrumentation systems?

In short, it's a handy tool for precise flow and pressure control in demanding lines.

• BSP female connections provide secure, leak-tight fittings
