High Torque DC 24V 5 RPM Reversible Worm Gear Motor Reducer With 8mm D Shape Shaft For Sweepers Printers Ovens And Vending Machines 1 To 1340 Reduction Ratio Meccanixity Gear Box Electric Motor For Industrial Use

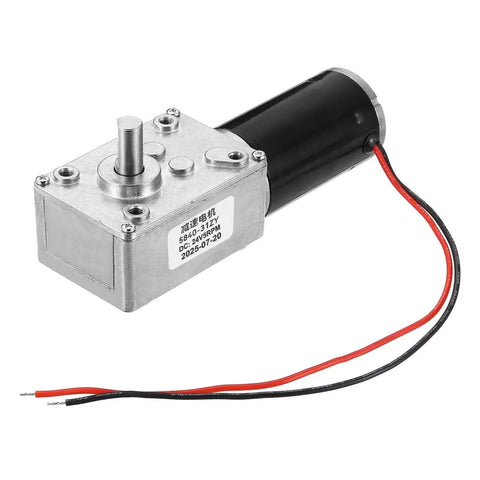

High Torque 24V Worm Gear Motor, 5 RPM, 8mm Shaft - 1 Pack

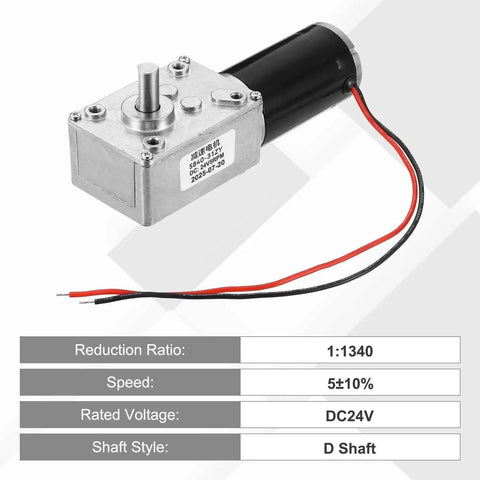

✔️ 24V DC, 5 RPM output, 1:1340 ratio, 8mm D-shaft, perpendicular output

This compact DC worm gear reducer delivers high torque in tight spaces, ideal for compact drives in sweepers, vending machines, printers, ovens, and similar equipment.

✅ Rated Voltage: 24V DC
✅ No-Load Output Speed: 5±10% RPM
✅ Reduction Ratio: 1:1340

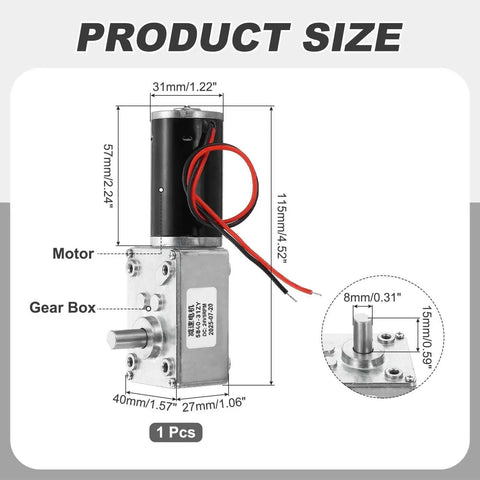

✅ Total Size: 115 x 40 x 27 mm (4.52 x 1.57 x 1.06 in)
✅ Gear Box Size: 58 x 40 x 27 mm (2.28 x 1.57 x 1.06 in)
✅ Motor Size: 57 x 31 mm (2.24 x 1.22 in)

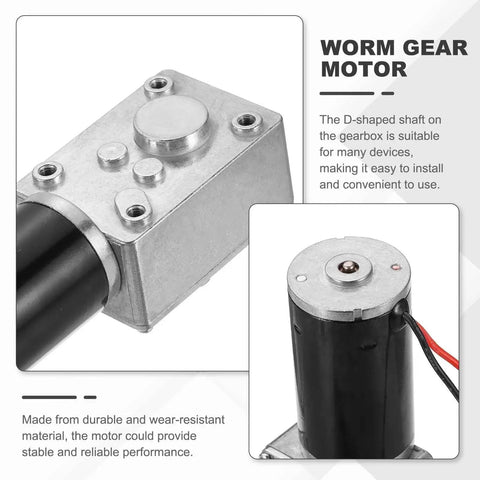

✅ Shaft Size: 8 x 15 mm (0.31 x 0.59 in)

💡 What is a worm gear motor used for in industrial equipment? Worm gear reducers provide high torque in a compact form, handy for space-limited drives. - high torque at low speeds, handy for conveyors and feeders
- compact footprint for tight enclosures in vending machines and printers
- simple, robust mounting with perpendicular shaft orientation
- steel worm gears deliver wear resistance and long service life
