High Torque Nema 14 Stepper Motor 2 Phase 1.8 Degree 20 Ncm Bipolar Drive For 3D Printer DIY CNC Robot Builds, 35mm Square Body, 1.2A, 2.4 Ohm, 4 Wire Cable, 24mm Shaft, Phi 5mm, 1m Cable Length YEJMKJ

NEMA 14 High-Torque Stepper Motor for 3D Printers - 1pc
✔️ 2-phase bipolar, 1.8° step, 20 Ncm torque, 1.2A, 2.4Ω, 1m cable

Compact NEMA 14 stepper motor delivering precise, smooth motion for 3D printers, CNC machines, and robotics projects. Its 35x35x34.2 mm body fits tight spaces while delivering solid torque.

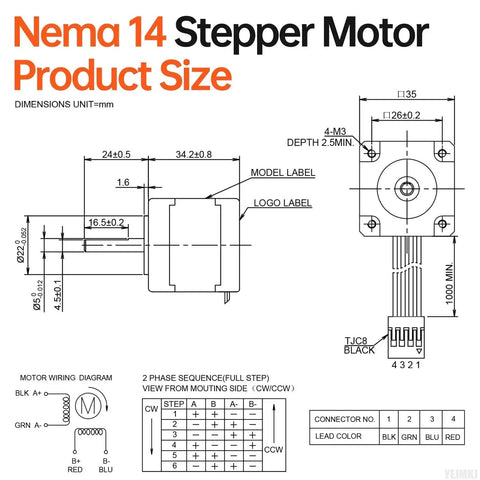

✅ Body size 35x35x34.2 mm (1.38x1.38x1.35 in) with 26 mm hole spacing
✅ Shaft Ø5 mm, length 24±0.5 mm; D-cut length 16.5 mm

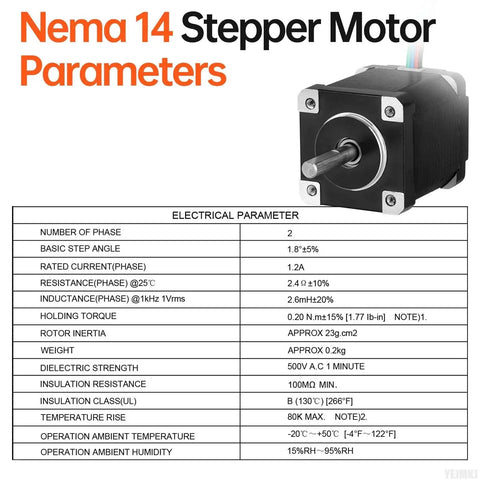

✅ Rated current 1.2 A; resistance 2.4 Ω; inductance 2.6 mH ±20%
✅ Holding torque 20 Ncm (28.32 oz-in); step angle 1.8° (200 steps/rev)
✅ Cable length 1 m; 4-wire: A+ A- B+ B- (Black, Green, Red, Blue)
✅ Weight 194 g; rotor inertia ~23 g-cm²
✅ Operating temp -20°C to 50°C; insulation class UL B; dielectric strength 500 VAC
✅ Ideal for 3D printers, DIY robots, CNC machines and compact automation

💡 What is a stepper motor used for in DIY projects like 3D printers and CNC machines?

A handy overview of typical uses and benefits. - Precise motion control for positioning axes in 3D printers and CNC setups - Easy integration with common driver boards using 4-wire bipolar wiring - Compact footprint fits tight spaces while delivering solid torque - Smooth operation with microstepping and proper current settings
