High Torque Nema 17 Stepper Motor For Dope 3D Printers And CNC Setups, Bipolar 2 Phase, 1.8 Degree Step, 0.29 Nm Torque, 34 Mm Body, 30 Ohm, 0.4 A, 4 Wire, 1 Meter Cable, Shaft 5 Mm, 24 Mm Length

High Torque Nema 17 Stepper Motor for 3D Printers
✔️ 2-phase bipolar, 1.8° steps, 0.29 Nm torque, 42x42x33.2 mm

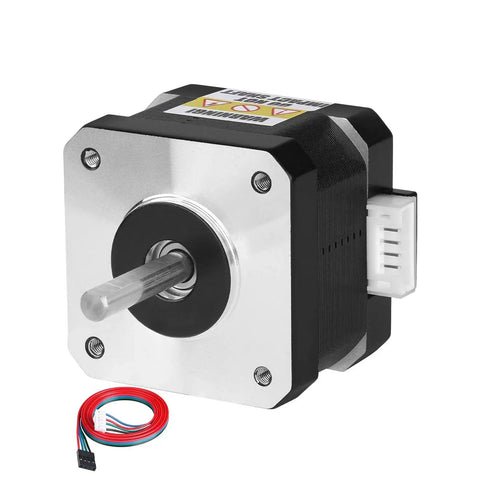

This compact Nema 17 stepper motor is built for precise rotary motion in small CNC machines, DIY robots, and 3D printers. It ships as a single unit with a 1 m 4-wire cable for straightforward integration.

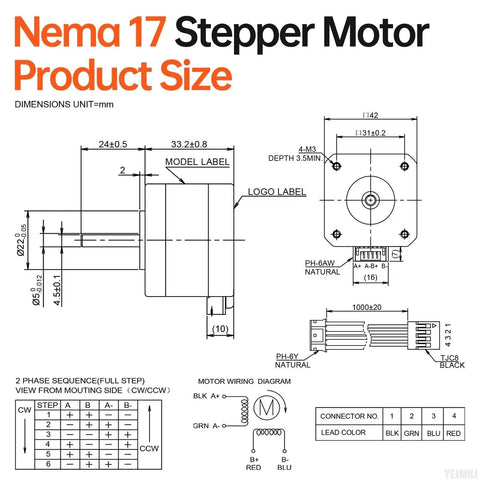

✅ 42x42x33.2 mm (1.66x1.66x1.31 in) body, shaft Ø5 mm, length 24±0.5 mm
✅ 31 mm installation hole distance (1.22 in)
✅ 4-wire cable, A+ A-, B+ B-, 1 m length

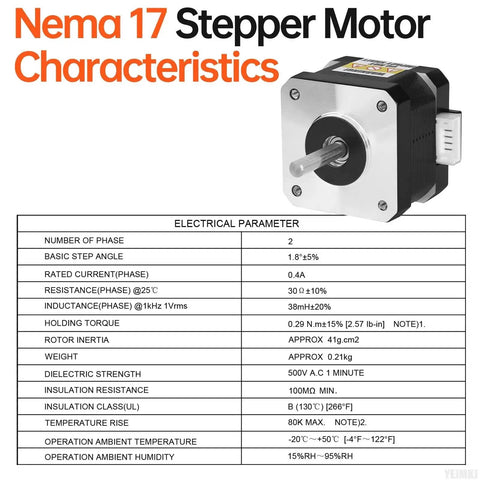

✅ Weight 226 g, holding torque 0.29 Nm, resistance 30 Ω, inductance ~38 mH

💡 What is a Nema 17 stepper motor used for in small CNC machines and 3D printers? These handy motors provide precise rotation and reliable control in compact builds.
- High torque at low speeds for accurate positioning
- 1.8 degree step angle gives fine resolution with standard drivers
- Compatible 2-phase bipolar wiring and 4-wire cabling

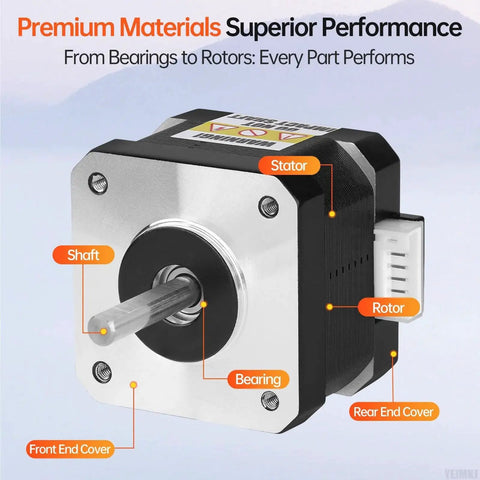

- Durable build suitable for hobbyist and light industrial use
