High Torque Nema 34 Closed Loop Stepper Kit With 9.00Nm, One Axis, 2 Meter Cables, CL86Y-V20 Driver, 0 To 8.5A, 20 To 80 VAC Or 30 To 110 VDC, Encoder Compatible, Intelligent Current Tuning, Supports 5V And 24V Control Signals, No Brake Signal

High-Torque NEMA 34 Closed Loop Stepper Kit
✔️ 9.00Nm motor with CL86Y-V20 driver, 0-8.5A, 20-80VAC, encoder support, and 2m cables for precise motion control.

This is a closed-loop stepper motor kit designed for high-torque applications in CNC machines, robotics, and automated systems where accurate positioning is key.

✅ Holding torque: 9.00Nm (1274.50oz.in) for strong performance.

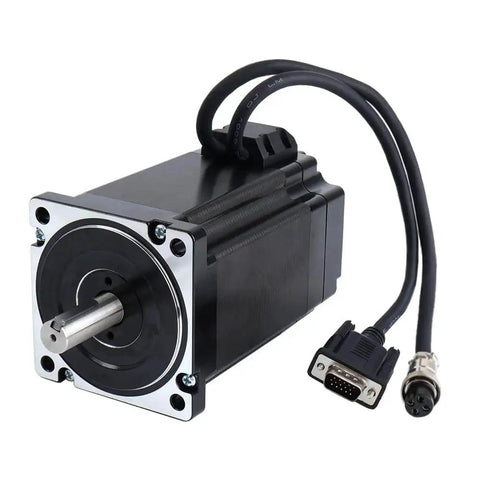

✅ Motor size: 86 x 86mm frame, 137mm length, with 14mm shaft.

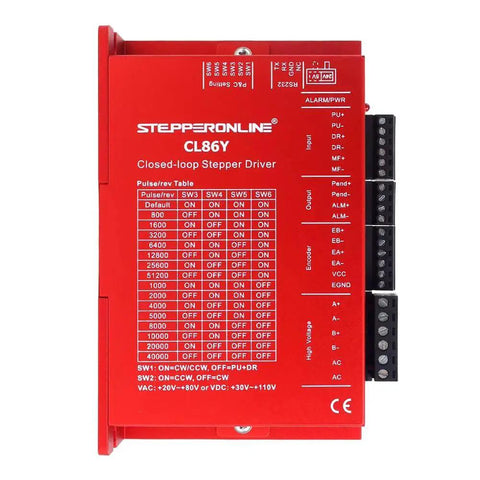

✅ Driver specs: 0-8.5A peak current, 20-80VAC input, and pulse up to 200kHz.
✅ Encoder: 1000PPR resolution, optical incremental type for reliable feedback.

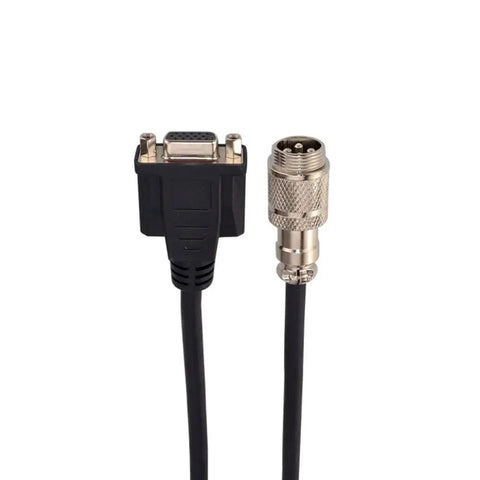

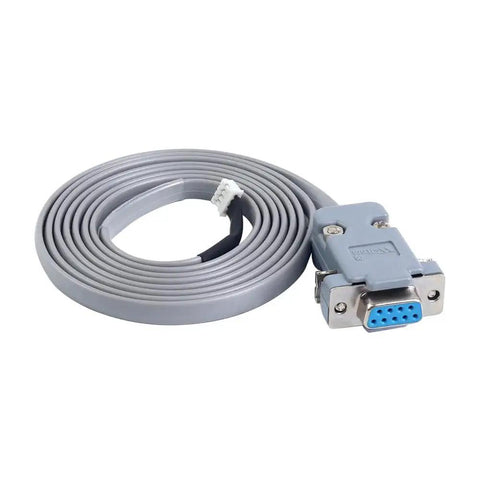

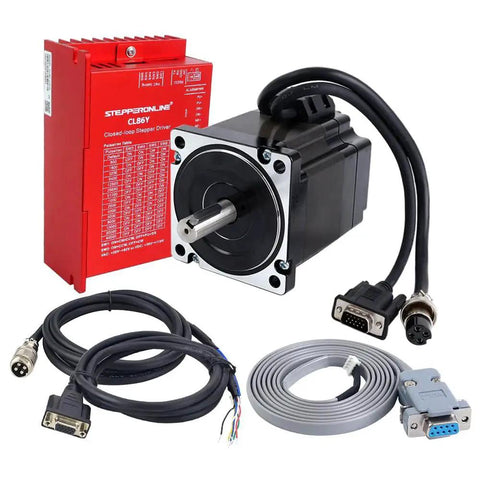

✅ Kit includes: One motor, driver, and cables for easy setup.

💡 Why go for a closed-loop stepper system in motion control setups?
This setup boosts accuracy by fixing errors on the spot.
- Reduces motor stalling in demanding tasks
- Improves energy use by adjusting current smartly
- Works well in industrial gear for steady results
- Boosts system lifespan with real-time tweaks
