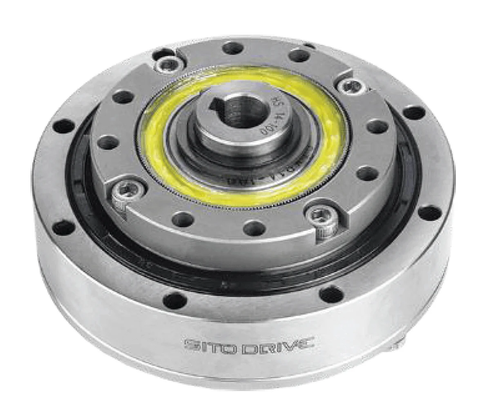

HS-17 Harmonic Gear Reducer 80:1

✔️ Compact High Torque Harmonic Drive with Cross Roller Bearing

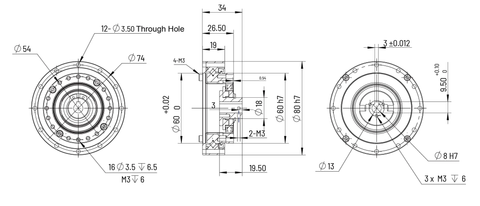

The HS-17 80:1 harmonic gear reducer is designed for systems that require higher torque density and finer positioning accuracy. Its cross roller bearing construction provides high rigidity and dependable external load support in an 80mm footprint.

✅ Gear ratio: 80:1
✅ Rated torque at 2000 rpm: 22 Nm
✅ Limit for repeated peak torque: 43 Nm
✅ Limit for average torque: 27 Nm
✅ Limit for momentary peak torque: 87 Nm
✅ Maximum input speed: 7300 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.079 x10^4 kgm2
✅ Backlash: ≤10 arcsec
✅ Delivery time 10 to 15 days

💡 What advantage does a higher ratio harmonic reducer provide in precision machinery?

Higher gear ratios improve motion resolution and torque control.

- Finer positioning steps

- Increased torque in compact systems

- Smooth motion for precision equipment

This 80:1 version delivers accurate motion with increased torque capacity.
