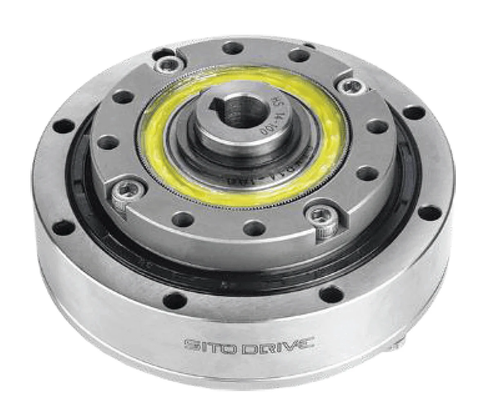

HS-20 Harmonic Gear Reducer 100:1

✔️ High Reduction Harmonic Drive for Precision Load Handling

The HS-20 100:1 harmonic gear reducer is intended for applications that require very fine positioning accuracy and stable torque under load. Its integrated bearing structure supports external forces while maintaining smooth operation.

✅ Gear ratio: 100:1
✅ Rated torque at 2000 rpm: 40 Nm
✅ Limit for repeated peak torque: 82 Nm
✅ Limit for average torque: 49 Nm
✅ Limit for momentary peak torque: 147 Nm
✅ Maximum input speed: 6500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.193 x10^4 kgm2
✅ Backlash: ≤10 arcsec
✅ Delivery time 10 to 15 days

💡 Why is a 100:1 harmonic reducer preferred in precision automation?

A 100:1 ratio delivers very fine motion control and stable torque output.

- High positioning accuracy

- Reliable performance under varying loads

- Compact solution for precision systems

This 100:1 model provides smooth and dependable performance for demanding applications.
