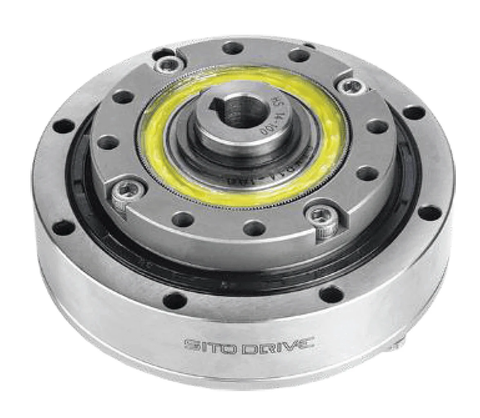

HS-20 Harmonic Gear Reducer 30:1

✔️ High Rigidity Strain Wave Gear with Integrated Load Support

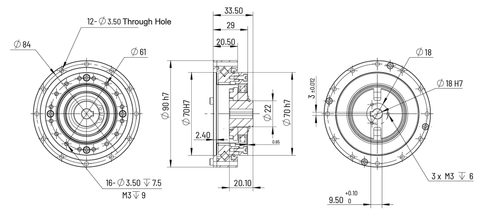

The HS-20 30:1 harmonic gear reducer is built for automation systems that need stable torque delivery and smooth motion in a compact 90mm housing. The integrated cross roller bearing directly supports external loads, making it a handy solution for industrial automation and precision equipment.

✅ Gear ratio: 30:1
✅ Rated torque at 2000 rpm: 15 Nm
✅ Limit for repeated peak torque: 27 Nm
✅ Limit for average torque: 20 Nm
✅ Limit for momentary peak torque: 50 Nm
✅ Maximum input speed: 6500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.193 x10^4 kgm2
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 Why are strain wave gear reducers used in load bearing automation systems?

Strain wave reducers combine torque transmission and load support in one compact unit.

- Integrated bearing supports axial and radial loads

- Smooth torque transfer improves positioning repeatability

- Compact footprint simplifies mechanical design

This 30:1 version delivers reliable motion control for precision driven machinery.
