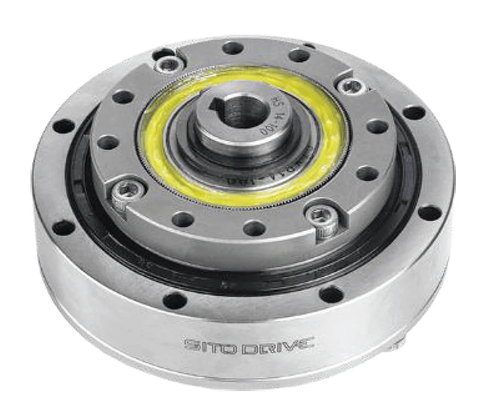

HS-20 Harmonic Gear Reducer 50:1

✔️ Compact Harmonic Drive for Stable Torque Output

The HS-20 50:1 harmonic gear reducer is designed for applications that need higher torque while keeping motion smooth and accurate. Its high rigidity structure and cross roller bearing allow direct mounting of external loads.

✅ Gear ratio: 50:1
✅ Rated torque at 2000 rpm: 25 Nm
✅ Limit for repeated peak torque: 56 Nm
✅ Limit for average torque: 34 Nm
✅ Limit for momentary peak torque: 98 Nm
✅ Maximum input speed: 6500 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 0.193 x10^4 kgm2
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 How does a 50:1 harmonic reducer improve torque control?

A 50:1 ratio increases torque output while maintaining precise motion control.

- Improved load handling capability

- Consistent positioning accuracy

- Reduced need for external bearings

This 50:1 model offers a solid balance between torque and precision.
