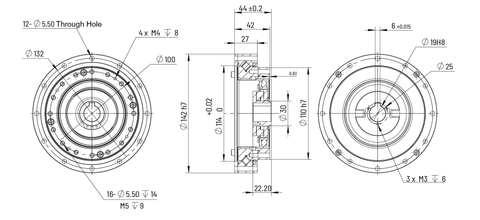

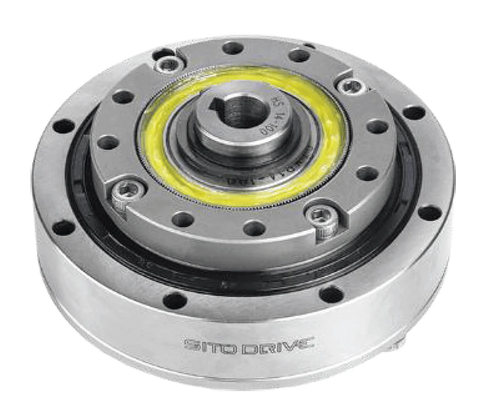

HS-32 Harmonic Gear Reducer 120:1

✔️ Ultra High Reduction Harmonic Drive for Maximum Control

The HS-32 120:1 harmonic gear reducer is designed for systems requiring maximum reduction and extremely fine motion resolution. Its heavy-duty construction and integrated bearing allow reliable operation under high torque and load conditions.

✅ Gear ratio: 120:1
✅ Rated torque at 2000 rpm: 137 Nm
✅ Limit for repeated peak torque: 353 Nm
✅ Limit for average torque: 216 Nm
✅ Limit for momentary peak torque: 686 Nm
✅ Maximum input speed: 4800 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 1.69 x10^4 kgm2
✅ Backlash: ≤10 arcsec
✅ Delivery time 10 to 15 days

💡 What applications benefit from ultra high reduction harmonic drives?

Very high ratios are used when maximum precision and torque control are required.

- Ultra fine positioning resolution

- Stable torque for sensitive operations

- Reliable performance in heavy automation

This 120:1 model delivers controlled motion for advanced industrial systems.
