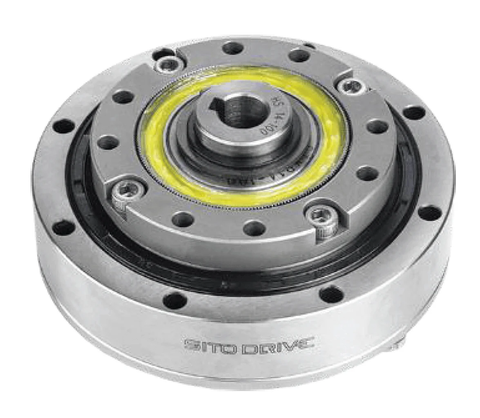

HS-32 Harmonic Gear Reducer 80:1

✔️ High Torque Density Harmonic Drive for Large Motion Systems

The HS-32 80:1 harmonic gear reducer is designed for systems that need higher torque density and controlled positioning under heavy loads. Its rigid housing and internal bearing design allow direct load mounting without extra support components.

✅ Gear ratio: 80:1
✅ Rated torque at 2000 rpm: 118 Nm
✅ Limit for repeated peak torque: 304 Nm
✅ Limit for average torque: 167 Nm
✅ Limit for momentary peak torque: 568 Nm
✅ Maximum input speed: 4800 rpm
✅ Limit for average input speed: 3500 rpm
✅ Moment of inertia: 1.69 x10^4 kgm2
✅ Backlash: ≤20 arcsec
✅ Delivery time 10 to 15 days

💡 How does a higher reduction ratio improve torque control?

Higher ratios increase usable torque while improving positioning resolution.

- Better control under heavy loads

- Increased torque output without size increase

- Stable performance in precision machinery

This 80:1 model provides strong torque with smooth motion behavior.
