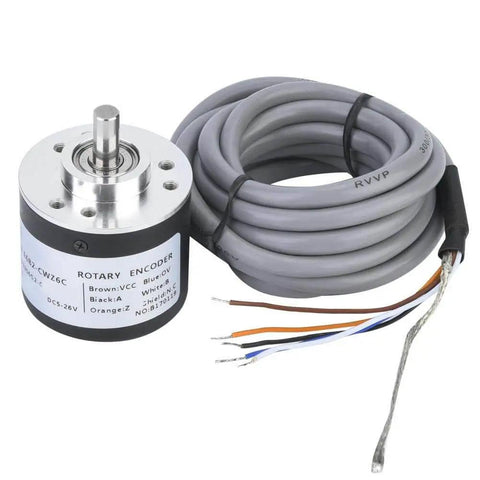

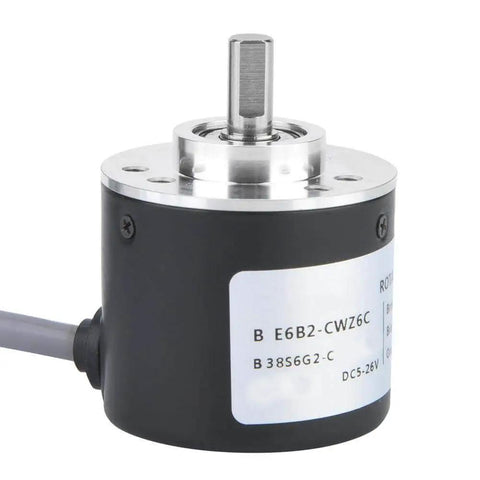

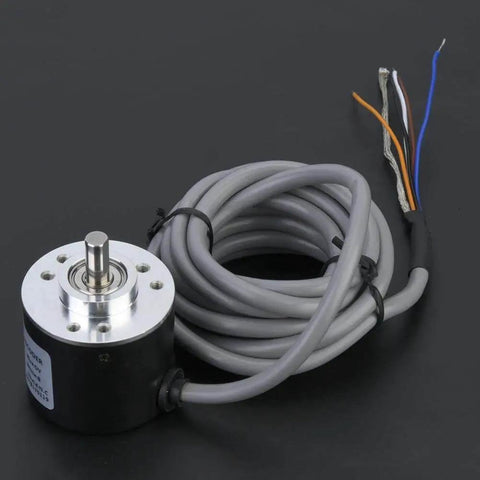

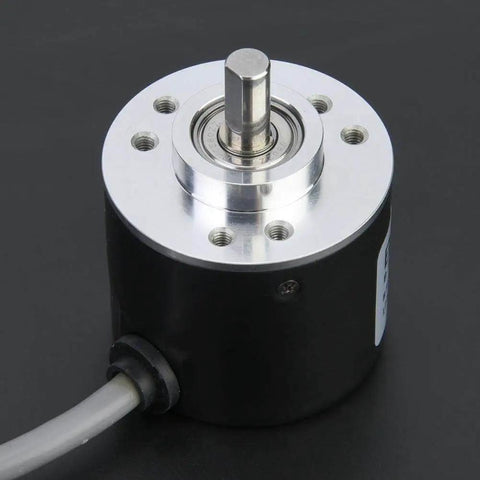

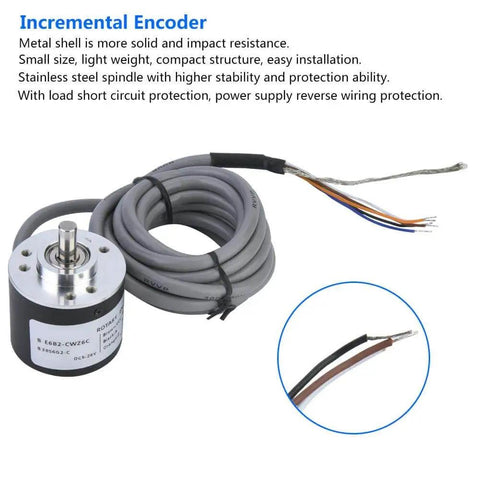

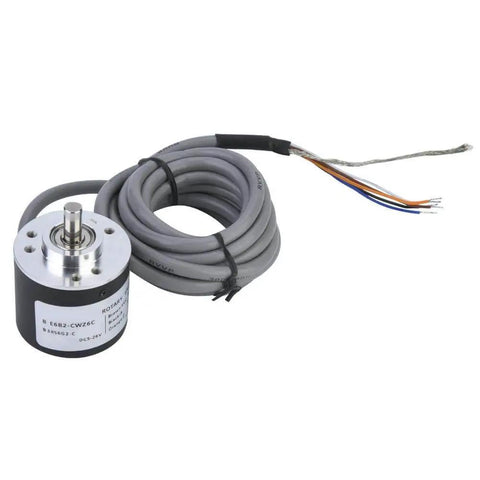

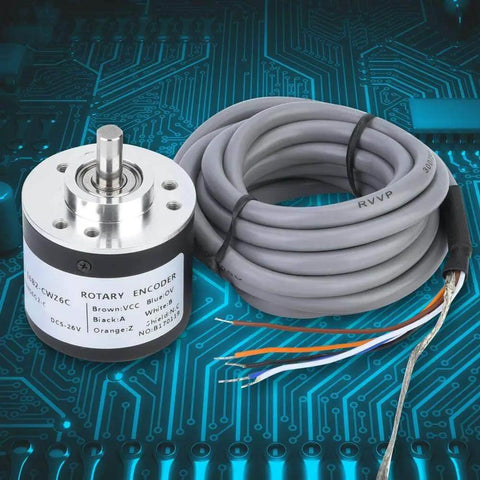

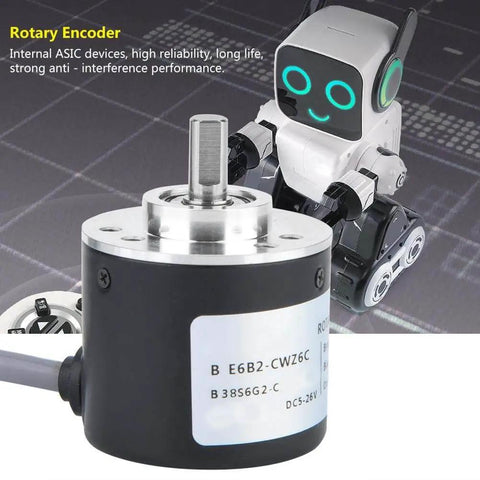

Incremental Rotary Encoder Five To Twenty Six Volts DC Top Notch 38 Millimeter Diameter NPN Open Collector ABZ Three Phase Encoder With Six Millimeter Shaft And Two Meter Cable Six Hundred P R Pulses Per Revolution Short Circuit And Reverse Wiring

High-Accuracy 38mm Incremental Encoder, 5-26V DC, 1pc
✔️ 38 mm dia, 6 mm shaft, 2 m cable, ABZ, 600 P/R, Pack: 1 unit

The compact 38 mm diameter incremental rotary encoder provides precise position feedback for automation, robotics, CNC machines, and packaging lines. Its stainless steel spindle and robust metal shell deliver solid durability, while the input voltage range of 5-26 V DC and ABZ open-collector outputs simplify wiring and integration.

✅ Output: A, B, Z phases with NPN open-collector interface
✅ Outer diameter 38 mm; shaft diameter 6 mm; radial load 30 N; thrust load 20 N
✅ Voltage range: DC 5-26 V; ABZ open-collector outputs
✅ Cable length: 2 m; 600 P/R resolution
✅ Durable build: stainless steel spindle and metal shell for stability and EMI resistance

💡 What is a rotary encoder used for in motion control? A handy overview for common uses in automation. - Tracking angular position and speed in robotics, CNC, packaging, and conveyors. - Interfaces with ABZ phase outputs and 5-26 V DC drive systems for easy wiring. - Rugged stainless steel spindle and metal shell improve longevity and EMI resistance.
