Heavy Duty High Temp Spiral Wound Gasket For ASME B16 20 Flanges Class 600 In 54 Inch Pipe Size 56.25 Inner Diameter And 61.25 Outer Diameter 304 Stainless Steel With Flexible Graphite Core Teadit 900054A304GR600 Industrial Seal

Heavy Duty Spiral Gasket for 54in Flanges (Single)
✔️ Single unit gasket, Class 600, 54 in pipe, 304SS windings, graphite

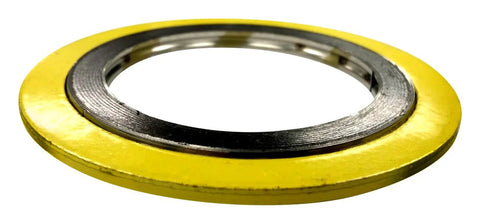

This heavy-duty spiral wound gasket is designed for ASME B16.20 gaskets used with ASME B16.47 Series A flanges in Class 600 service. It features a centering ring for accurate flange alignment, a spiral winding made from 304 stainless steel with a flexible graphite filler, and a durable construction ideal for high-temperature systems.

✅ Spiral wound gasket with central centering ring for precise alignment
✅ 304 stainless steel windings with flexible graphite filler for high-temp service
✅ Temperature range -150 to 842 °F (-103 to 450 °C)
✅ Fits ASME B16.20 Gaskets for B16.47 Series A Flanges / Class 600
✅ Large-diameter gasket for 54 in pipe systems with robust compression limiter
✅ Durable, easy installation and removal

Dimension	Inches	Millimeters
Pipe Size	54 in	1371.6 mm
Inner Diameter	56.25 in	1428.75 mm
Outer Diameter	61.25 in	1555.75 mm
Temperature Range	-150 to 842 °F	-103 to 450 °C

💡 What is a heavy-duty spiral wound gasket used for in large-diameter, high-temperature piping systems?

This handy seal is used to join large-diameter industrial flange connections and keep leaks under extreme heat and pressure. - Handy for ASME B16.20 & B16.47 Class 600 joints - Uses a spiral wound construction with graphite filler for heat tolerance - Ensures proper centering and controlled compression for long service life
