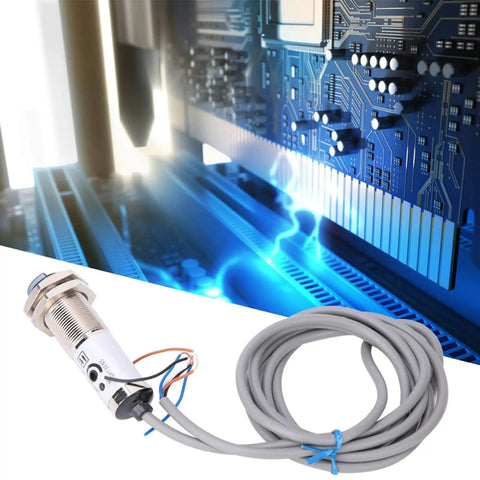

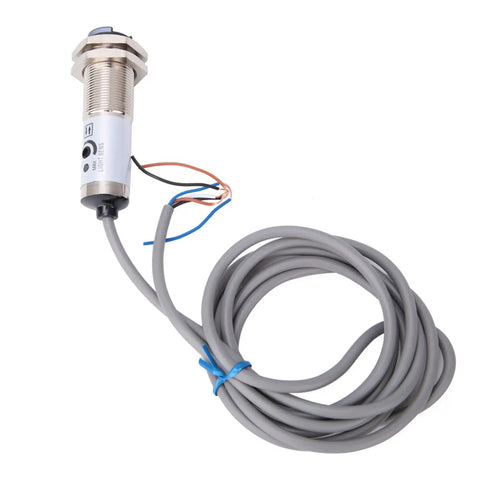

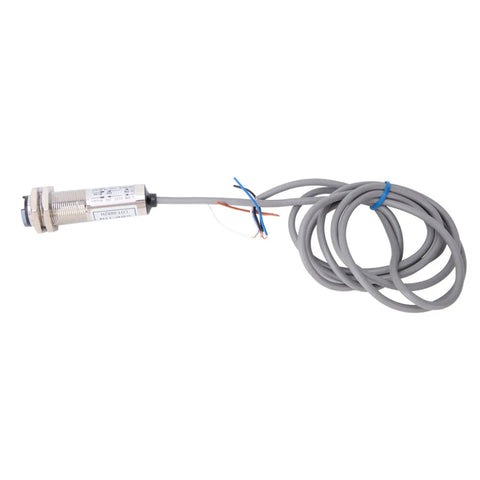

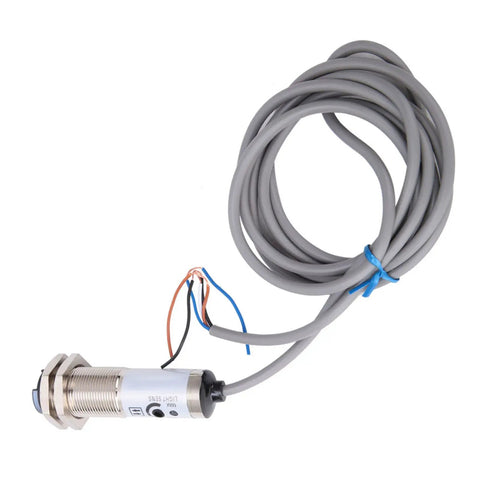

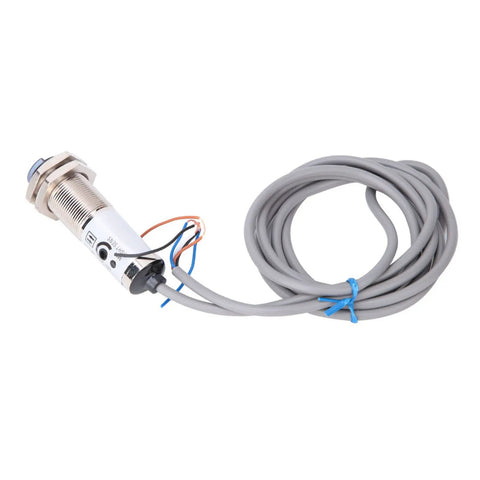

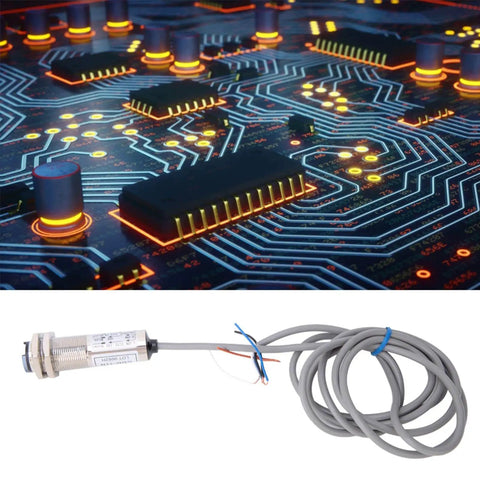

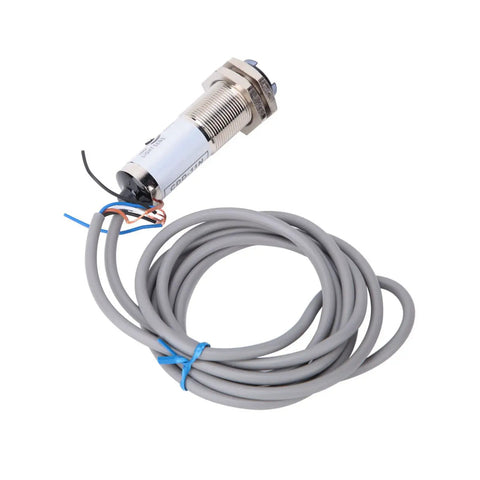

Infrared Proximity Sensor With 10mm Detection Distance NPN NO Photoelectric Switch For Industrial Automation 4 Wire Cylindrical Diffuse Reflection Sensor 12 To 24VDC Built Tough

Infrared Proximity Sensor with 10mm Detection, single unit 12-24V DC
✔️ NPN NO output, 10mm diffuse detect, single unit, 12-24V DC, IP66 rugged

This compact photoelectric sensor is built for harsh industrial environments, offering non-contact object detection via diffuse reflection. It’s ideal for conveyors, packaging lines, and automation control in factories that require reliable sensing in dirty or wet settings.

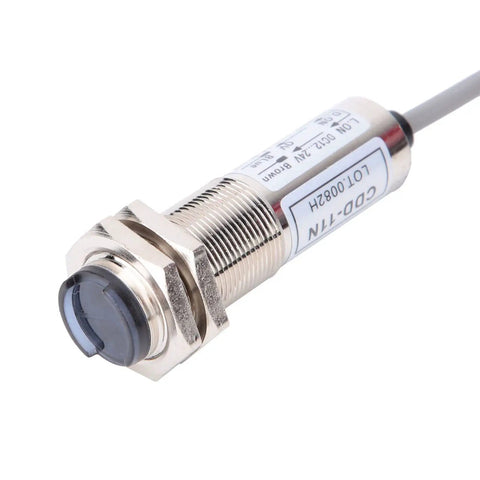

✅ Model: CDD-11N
✅ Power supply: DC12-24V
✅ Output: NPN NO
✅ Detection distance: 10mm
✅ Detecting objects: opaque objects
✅ Head diameter: 18mm
✅ Cable length: 1.75m
✅ Light source: transmitting tube
✅ Induction method: diffuse reflection
✅ Protection rating: IP66
✅ Housing: copper plating
✅ Control output: <300mA
✅ Current consumption: <10mA
✅ Response frequency: 500Hz
✅ Insulation resistance: >50MΩ (500VDC)
✅ Withstand voltage: 1500VAC 50/60Hz 1min
✅ Operating environment: -25 to +70°C, 35-95%RH
✅ Storage environment: -30 to +80°C, 35-95%RH
✅ Circuit: Built-in circuit, reverse polarity protection, over-current protection

💡 What is a photoelectric sensor used for in automation?

Handy for non-contact detection across gaps and triggering actions in machines and lines.

- Detects presence/absence of items on conveyors - Triggers pick-and-place operations in robotic systems - Serves as safety interlock or process-monitoring sensor - Works with opaque or reflective targets within a short range
