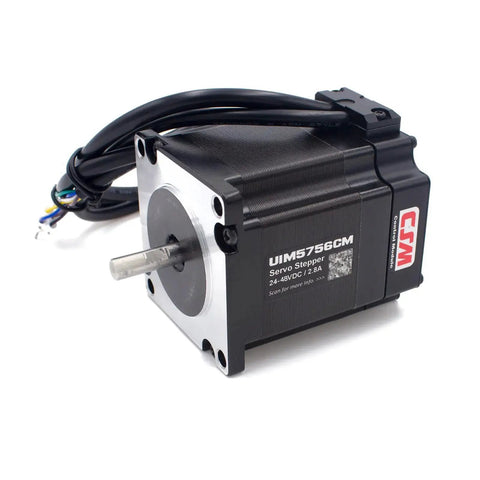

Integrated NEMA 23 Servo Stepper Motor With Built In Encoder And Closed Loop Motion Controller And Driver CAN Bus Interface Aluminum Case High Torque 2000 RPM 1.26 Nm 3.5A 24 48VDC UIM5756CM

High-Torque NEMA23 Integrated Servo Stepper with CAN Bus
✔️ Single-unit with built-in encoder, CAN bus, 1.26 Nm torque, 24-48VDC

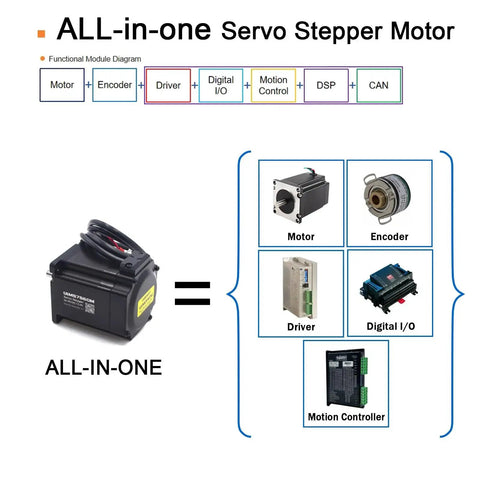

This integrated NEMA 23 motor combines a built-in encoder, driver, and motion controller in a rugged aluminum housing, ideal for compact automation tasks such as CNC machines, robotic arms, and packaging lines. The single-unit design simplifies wiring and integration in tight spaces.

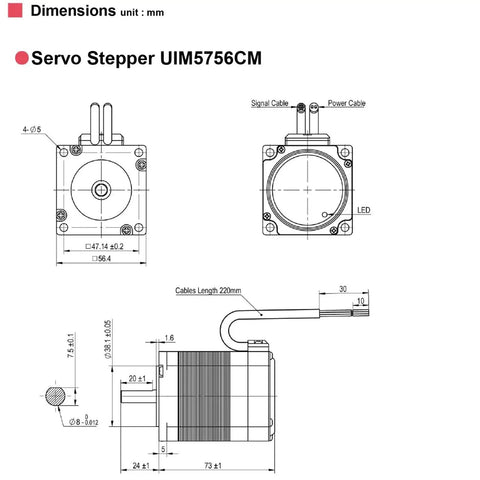

✅ 57×57 mm faceplate, NEMA 23 size for a compact footprint

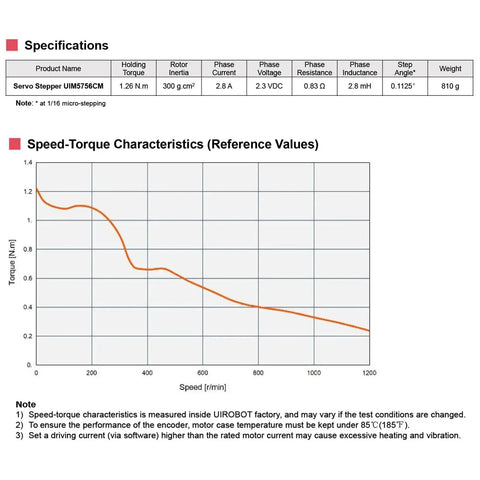

✅ Holding torque 1.26 N m (approx) for strong low-speed performance
✅ 1-128 micro-stepping with 24-48 VDC supply

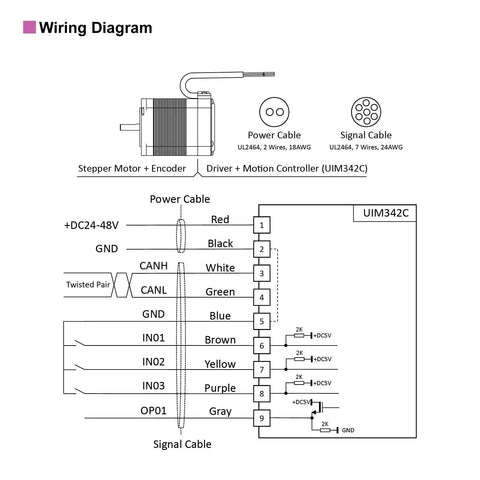

✅ Built-in encoder and CAN bus interface for multi-axis sync
✅ Closed-loop motion control with stall detection and backlash compensation
✅ Fast response up to 2000 RPM with low vibration and noise
✅ Aluminum housing for durable, heat-dissipating operation

💡 What is a servo stepper motor with built-in encoder used for in automation? This handy unit is designed for compact, precise motion in CNCs, robotics, and packaging lines. - open-loop vs closed-loop: closed-loop gives accurate positioning - handy for reducing wiring and control cabinet clutter - ideal when multi-axis coordination via CAN bus is needed
