Integrated Servo Stepper Motor Built In Multi Turn Absolute Encoder And CAN Bus

Integrated NEMA17 servo motor with multi-turn encoder CAN
✔️ 1-unit pack, built-in encoder, CAN bus, 0.43 N·m torque

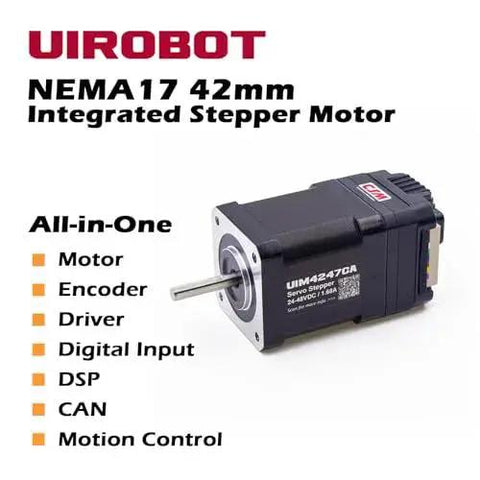

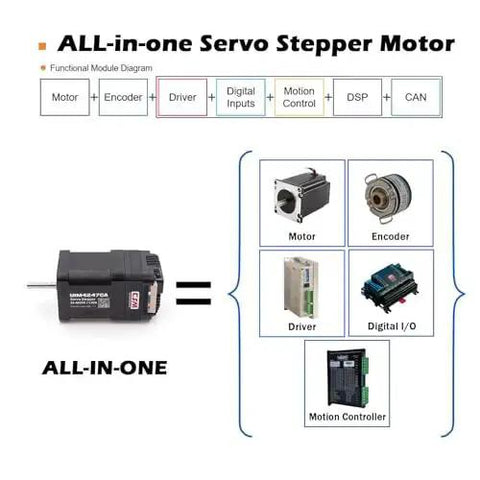

This integrated servo stepper combines a NEMA 17 size motor with a built-in multi-turn absolute encoder and CAN bus interface. It’s designed for high-precision, reliable motion in compact automation systems like CNCs, robotics joints, and automated warehouses where robust control is needed.

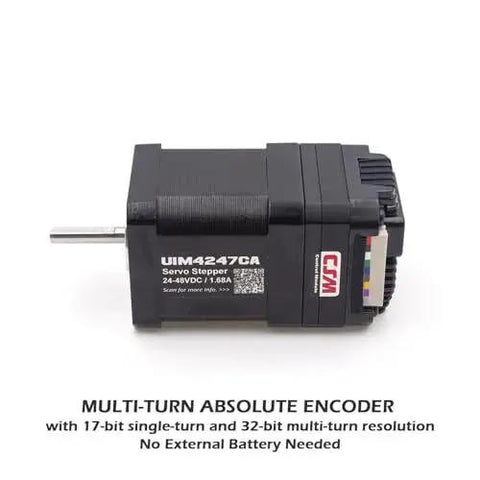

✅ 17-bit single-turn and 32-bit multi-turn absolute encoder
✅ Power-Off Memory preserves position after shutdown

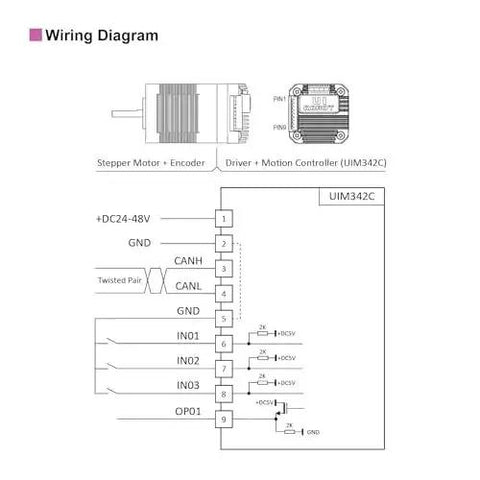

✅ CAN bus interface with anti-interference design for harsh environments

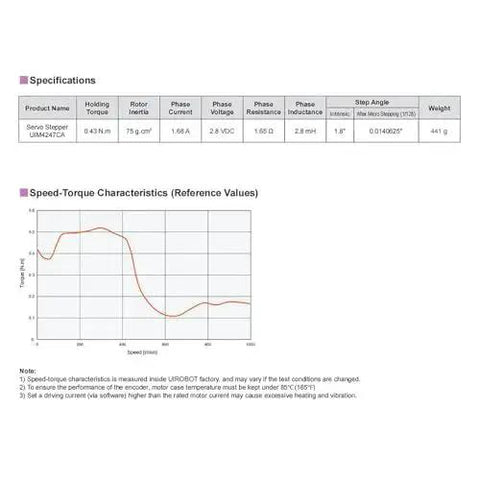

✅ 0.43 N·m holding torque; 24-48 VDC; 0.8-1.7 A; 1-128 microsteps

💡 What is an integrated servo motor with a multi-turn encoder used for? This handy setup helps with precise automation control.

- High-precision closed-loop motion for repeatable positioning

- Handy CAN bus enables synchronization across multiple motors in harsh environments

- Fault-tolerant DSP core with safe control and debugging capabilities
