JH-1616 Needle Roller Bearing Drawn Cup Open Steel Cage 1 Inch Inner Diameter 1 5 16 Inch Outer Diameter 1 Inch Width High Speed 13000 RPM 9640 Lbf Static 6200 Lbf Dynamic

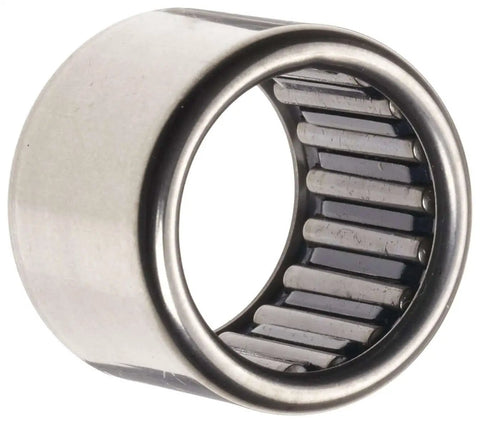

Drawn cup needle roller bearing, single unit, 1 in bore
✔️ ID 1 in, OD 1-5/16 in, width 1 in; 13,000 rpm max

This drawn cup needle roller bearing uses a steel outer cup and a steel cage to guide and space the rollers for smooth operation under high dynamic loads. Its reduced cross-section fits into restricted mounting spaces, making it ideal for automotive transmissions, pumps, and industrial gear drives.

✅ ID: 1.000 in (25.40 mm) bore
✅ OD: 1-5/16 in (33.34 mm)
✅ Width: 1.000 in (25.40 mm)
✅ Static load capacity: 9,640 lbf (42.9 kN)
✅ Dynamic load capacity: 6,200 lbf (27.6 kN)
✅ Max speed: 13,000 rpm
✅ Cage and rollers: steel cage; rollers are through-hardened high-carbon chromium steel

💡 What is a drawn cup needle roller bearing used for in heavy equipment?

These handy bearings handle heavy, dynamic loads in tight spaces.

- High-load capacity in automotive and industrial gear drives - Reduces friction and vibration at high speeds - Steel cage ensures even roller spacing - ANSI/ABMA 18.2 compliant quality assurance
