VXB
LBE5UU 5mm Ball Bushing Linear Motion Bearing VXB Brand
$19.02 CAD
$21.87 CADyou save $2.85 CAD
SKU: LBE5UU-VXB
UPC: 00193019294123
UPC: 00193019294123
Item: LBE5UU Bearing
Type: Linear Ball Bushing
Shaft Diameter: 5mm
Number Of Ball Circuits: 4
Quantity: One Bearing
Type: Linear Ball Bushing
Shaft Diameter: 5mm
Number Of Ball Circuits: 4
Quantity: One Bearing
| LBE5UU Standard Type:Slide Unit |
LBE5UU Standard Type Bearing, measures an inner diameter of 5mm, retainer material is resin, bearing is seals on both sides, Series mainly used in the USA
|

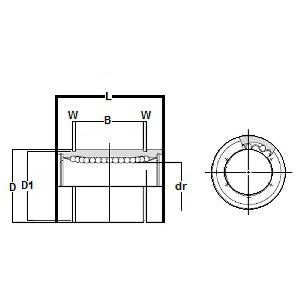

| Major Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | ||||
| mm | tolerance | mm | tolerance | mm | tolerance | mm | tolerance | ||
| 5 | 0-8 | 12 | 0-8 | 22 | 0-0.2 | 14.5 | 0-0.2 | 1.1 | 11.5 |
