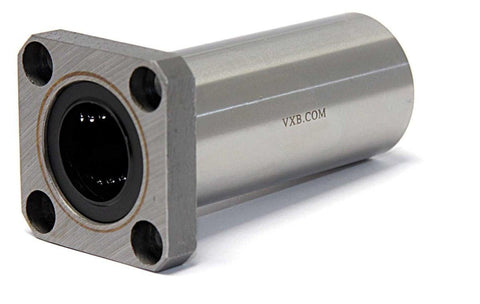

LMEK8LUU Square Flanged Linear Motion Long Ball Bushing. Inner diameter is 8mm, outer diameter is 16mm, and length is 45mm.
LMEK8LUU 8mm Square Flanged Bushing Linear Motion
$19.02 CAD
$21.87 CADyou save $2.85 CAD
SKU: LMEK8LUU
UPC: 00193019294987
UPC: 00193019294987
Item: LMEK8LUU Ball Bushing
Type: Flanged Linear Motion Ball Bushing
Inner Diameter: 8mm
Length: 45mm
Quantity: One Bearing
Type: Flanged Linear Motion Ball Bushing
Inner Diameter: 8mm
Length: 45mm
Quantity: One Bearing
| LMEK8LUU Square Flanged Linear Motion Long Ball Bushing 8mm |
- LMEK8LUU Ball Bushing
- Flanged Linear Motion Ball Bushing
- Inner Diameter: 8mm
- Length: 45mm
- Dynamic load rating: 431N
- Static load rating: 784N
- Quantity: 1 Bearing

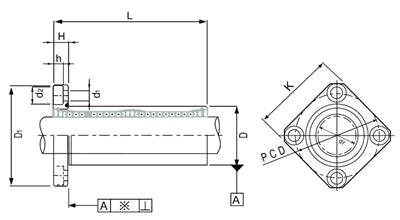

- d= 8mm
- D= 16mm
- K= 3.4mm
- d1= 6.5mm
- d2= 3.3mm
- h= 25mm
- D1= 32mm
- H= 5mm
- L= 45mm
