LMH25UU 25mm Flanged Ball Bushing CNC Linear Motion Bearing 25x40x59mm
UPC: 00193019295083
Type: Flanged Linear Motion Ball Bushing
Inner Diameter: 25mm
Outer Diameter: 40mm
Length: 59mm

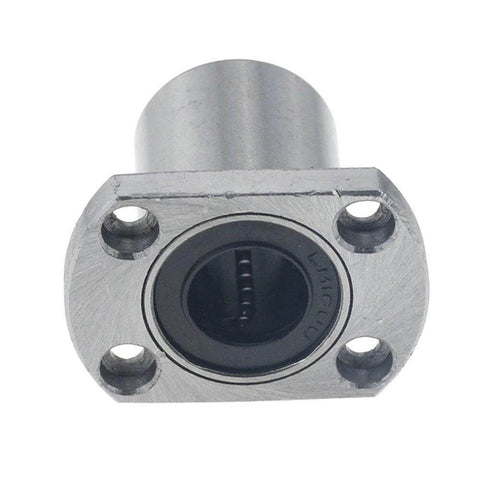

LMH25UU Flanged Linear Ball Bushing
✔️ Square Flange Type - 25mm x 40mm x 59mm
The LMH25UU is a square flanged linear motion ball bushing designed for precise, low-friction sliding movement. It’s perfect for CNC machines, 3D printers, and guided automation setups requiring compact flange mounting.
âś… Bore size: 25mm
âś… Outer diameter: 40mm
âś… Overall length: 59mm
âś… Flange type: Square
âś… Dynamic load rating: 980 N
âś… Static load rating: 1569 N
âś… Quantity: 1 bearing

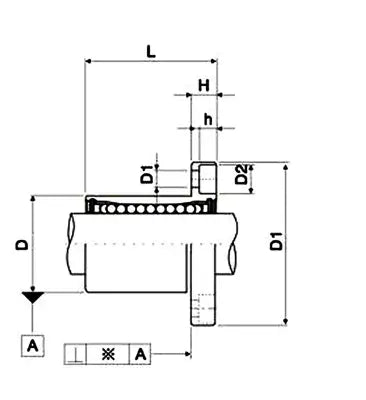

Housing Dimensions (mm):
| Feature | Size |
|---|---|
| D1 | 62 |
| W | 46 |
| H | 8 |
| A | 40 |
| F | 32 |
| d1 | 5.5 |
| d2 | 9 |
| h | 5.1 |
đź’ˇ What is a flanged linear bushing used for in motion systems?
It supports linear shafts and keeps alignment accurate in guided movement applications.
Great for 3D printers, automation equipment, and motion rails
âś… Square flange offers easy and stable mounting
âś… Ball bearing design ensures smooth travel and low friction
âś… Ideal for high-precision repetitive sliding motion
Built to glide and made to last - drop this bushing into your setup and let things move smoothly. Get yours today!
