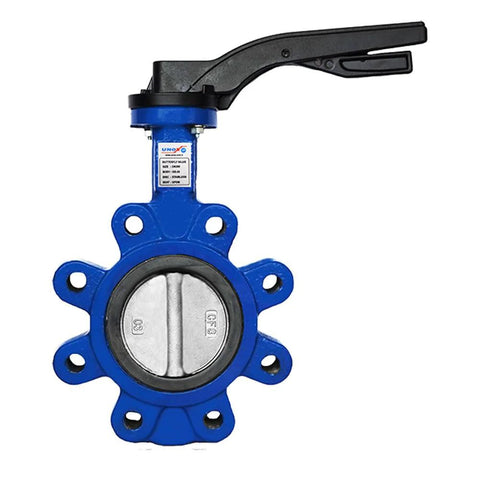

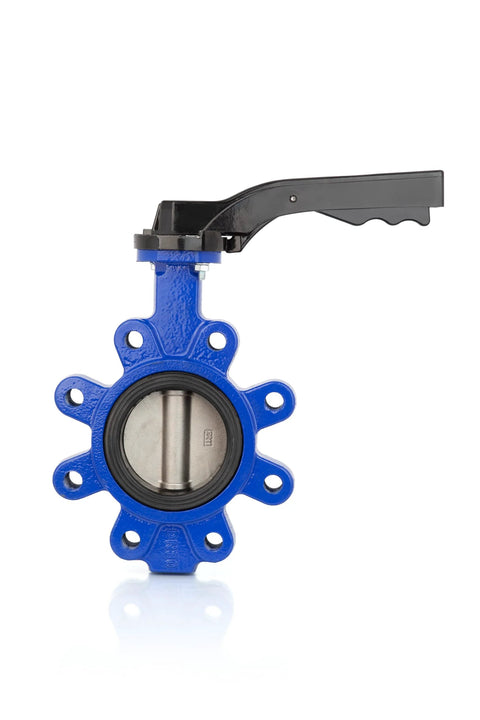

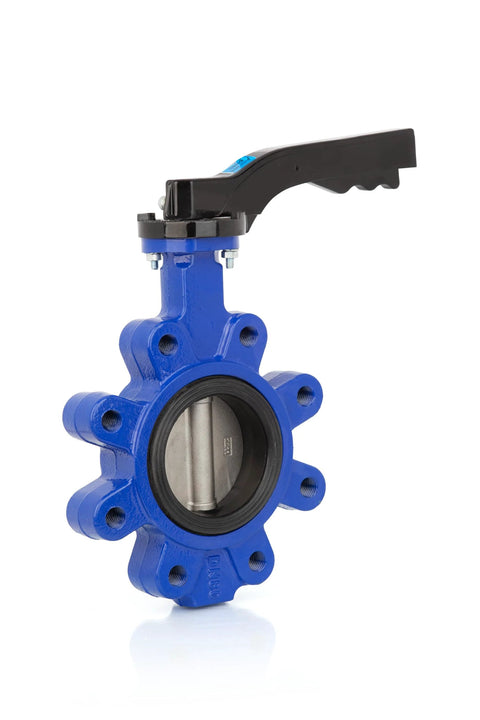

Lug Type Butterfly Valve DN100 4 Inch With Cast Iron Body And Iron Disc EPDM Gasket PN16 For Industrial Flow Control Of Liquids And Gases Durable Heavy Duty Nickel Plated Disc And Stainless Shaft UNOX

Rugged Lug-Type Butterfly Valve DN100, 4-Inch PN16, Single Unit
✔️ Lug-type, DN100 (4 inch), PN16 EN1092-1, cast iron body

This lug-type butterfly valve is built for industrial flow control and is commonly used in HVAC, water treatment, chemical processing, and general piping systems where tough, corrosion-resistant components are needed. It combines a GGG-40 cast iron body with a nickel-plated disc and stainless steel shaft for reliable performance in demanding environments.

Parameter	Details
Valve size	DN100 / 4 inch
Flange standard	EN 1092-1 PN16
Body material	GGG-40 cast iron
Disc material	Nickel-plated ductile iron
Shaft material	AISI 420 stainless steel
Gasket	EPDM
Max temperature	Up to 120 C

✅ Cast iron body with GGG-40 grade and nickel-plated disc for strength
✅ AISI 420 stainless shaft resists corrosion and handles heat well to 120 C
✅ EPDM gasket seals liquids, air, and light chemicals across PN16 EN1092-1 systems

💡 What is a lug-type butterfly valve used for? This handy device helps regulate flow in industrial piping and provides secure shut-off. - Works with EN 1092-1 PN16 flange connections (DN100) - Durable sealing with EPDM gasket and nickel-plated disc - Suitable for liquids, air, and light chemicals in HVAC and water treatment
