Magnetic Rotary Position Sensor Encoder Breakout Board Module With 14Bit Precision, SPI ABI UVW Outputs, 3.3V 5V Arduino Compatible, Plug And Play For Quick Setup In Robotic Projects With VESC And ODrive Controllers
UPC:
✔️ 14-bit precision rotary sensing with SPI ABI UVW PWM outputs

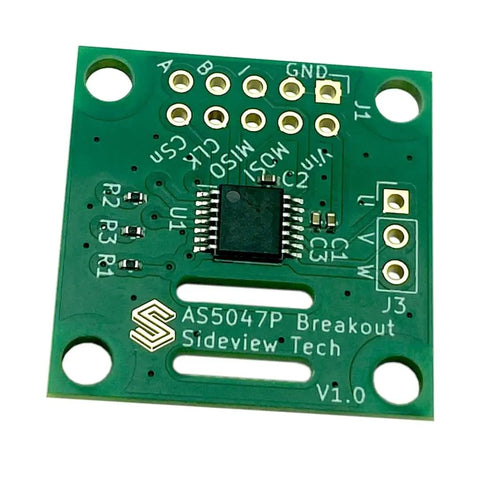

This compact breakout uses the AS5047P magnetic sensor to deliver high-resolution angular data. It's a ready-to-use module with magnet included, designed for quick setup in robotics, automation, and hobby CNC projects, compatible with 3.3V and 5V controllers including Arduino, VESC, and ODrive.
✅ 14-bit angular accuracy for precise angle measurement

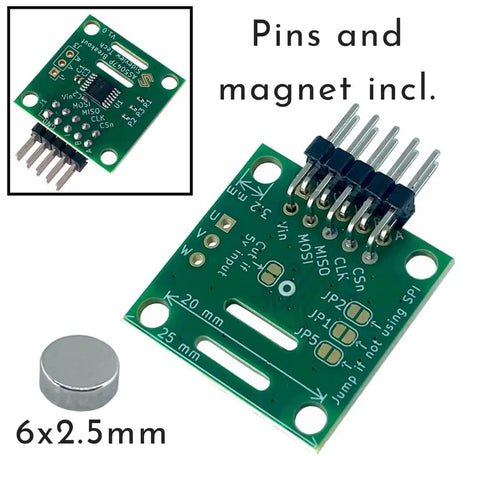

✅ Magnetic sensing for wear-free operation with included magnet
✅ Interfaces: SPI, ABI, UVW, and PWM outputs
✅ 3.3V/5V logic compatibility for Arduino, VESC, and ODrive
✅ ENIG gold-plated pads and lead-free solder for reliability
✅ Resource bundle with datasheets, code, CAD models, and GitHub links
💡 What is a magnetic rotary encoder breakout board used for in robotics and automation? This handy device provides precise angular feedback to motion controllers, improving accuracy and reliability.
- High-resolution angle data for motion control - Compatible interfaces: SPI, ABI, UVW, PWM - Handy for robotics, automation, CNC, and microcontroller projects - Works with VESC and ODrive controllers
