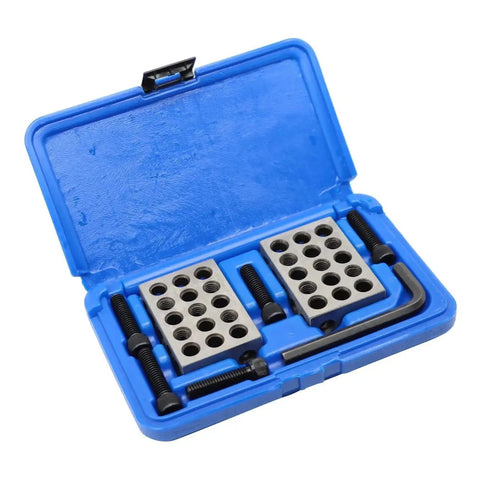

Matched Pair 1 2 3 Inch Machinist Setup Blocks With 23 Holes Precision Ground For Accurate Squaring And Layout Jecoupoon 0.0002 Inch Increments HRC 57 To 62 Flatness And Parallelism Within 0.0003 For Tight Repeatable Measurements shown in blue case

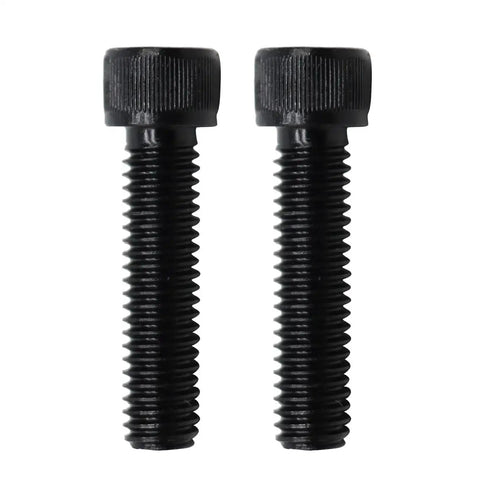

Two black hex socket head cap screws on a white background, featuring threaded shafts for industrial applications.

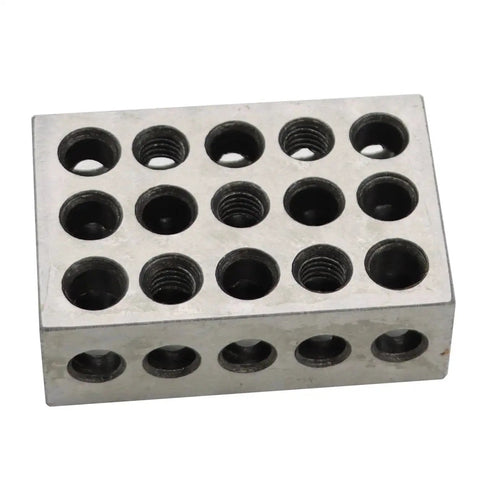

Matched Pair 1 2 3 Inch Machinist Setup Blocks With 23 Holes Precision Ground For Accurate Squaring And Layout Jecoupoon 0.0002 Inch Increments HRC 57 To 62 Flatness And Parallelism Within 0.0003 For Tight Repeatable Measurements, side view showing holes

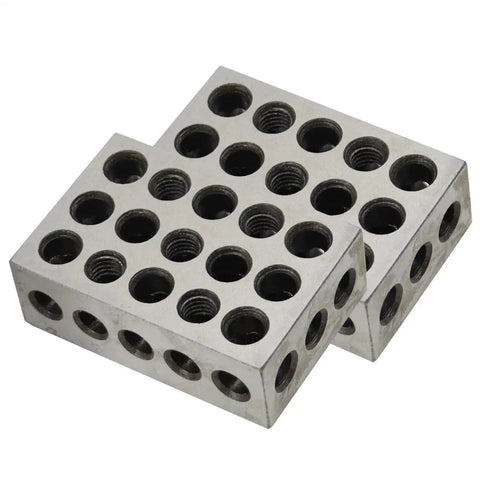

Matched Pair 1 2 3 Inch Machinist Setup Blocks With 23 Holes Precision Ground For Accurate Squaring And Layout Jecoupoon 0.0002 Inch Increments HRC 57 To 62

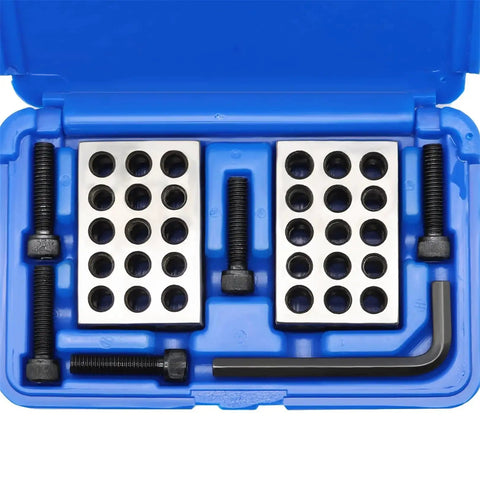

Matched Pair 1 2 3 Inch Machinist Setup Blocks With 23 Holes Precision Ground For Accurate Squaring And Layout Jecoupoon 0.0002 Inch Increments HRC 57 To 62 Flatness And Parallelism Within 0.0003 For Tight Repeatable Measurements set in blue case

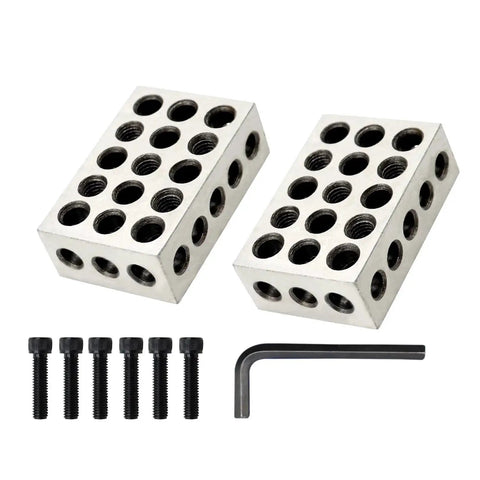

Matched Pair 1 2 3 Inch Machinist Setup Blocks With 23 Holes Precision Ground For Accurate Squaring And Layout Jecoupoon 0.0002 Inch Increments HRC 57 To 62 Flatness And Parallelism Within 0.0003 For Tight Repeatable Measurements, showing two metal blocks with bolts and hex key.

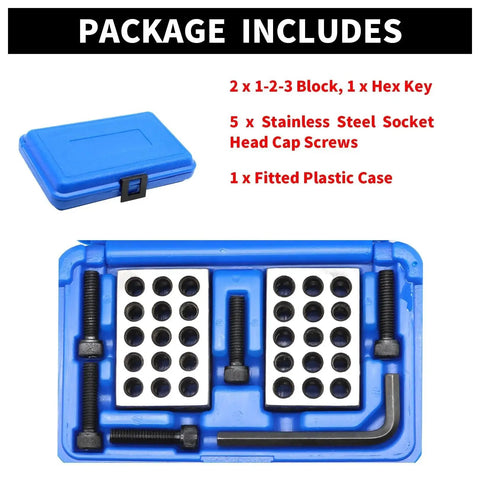

Matched Pair 1 2 3 Inch Machinist Setup Blocks With 23 Holes Precision Ground For Accurate Squaring And Layout Jecoupoon 0.0002 Inch Increments HRC 57 To 62 Flatness And Parallelism Within 0.0003 For Tight Repeatable Measurements in blue plastic case.
Bearings Canada

Matched Pair 1 2 3 Inch Machinist Setup Blocks With 23 Holes Precision Ground For Accurate Squaring And Layout Jecoupoon 0.0002 Inch Increments HRC 57 To 62 Flatness And Parallelism Within 0.0003 For Tight Repeatable Measurements


$95.16 CAD $190.35 CADyou save $95.19 CAD
SKU: VXB0CJMHMNVW
UPC: 00193019657843






Two-Piece 1-3 Inch Machinist Setup Blocks with 23 Holes
✔️ Matched pair blocks: 1-3 in, precision ground, 0.0002-0.0003

These precision setup blocks are hardened tool steel, ground on all six faces for accurate squaring and layout in milling, drilling, and inspection. Sizes included: 1 in (25.4 mm), 2 in (50.8 mm), and 3 in (76.2 mm) per matched pair. Each block is heat treated to HRC 57 to 62 with flatness and parallelism within 0.0003 in.

✅ Hardened tool steel, precision ground on six faces
✅ Size tolerance ±0.0003 in with flatness/parallelism to 0.0003 in
✅ Surface roughness 6-16 microinches
✅ 2-piece matched set with 23-hole layout

💡 What is a matched pair machinist setup block mainly used for in precision layouts?

These handy blocks provide reliable references for squaring and marking during machining and inspection.

  • Precise squaring and layout references for milling, drilling, and inspection
  • Flatness and parallelism within 0.0003 in for repeatable setups
  • Hardened tool steel with six-face precision ground finish
  • 23-hole design offers flexible positioning and measurement options
