Mini Linear Rail Guide Slide Actuator T6x1 Lead Screw with NEMA11 Stepper Motor,100mm Effective Stroke Length for DIY CNC Router Parts X Y Z Linear (Size:100mm)

Mini Linear Rail Guide Slide Actuator with T6x1 Lead Screw and NEMA11 Stepper Motor - 100 mm Travel for DIY CNC Routers (1-Pack)
✔️ Compact 1-pack mini linear stage for precise motion control in DIY CNC routers, inspection gear, and lab setups

This compact linear stage combines a T6x1 lead screw with a NEMA11 motor to deliver smooth, accurate linear motion. It’s a handy component for DIY CNC routers, inspection equipment, optical labs, and precision positioning tasks.

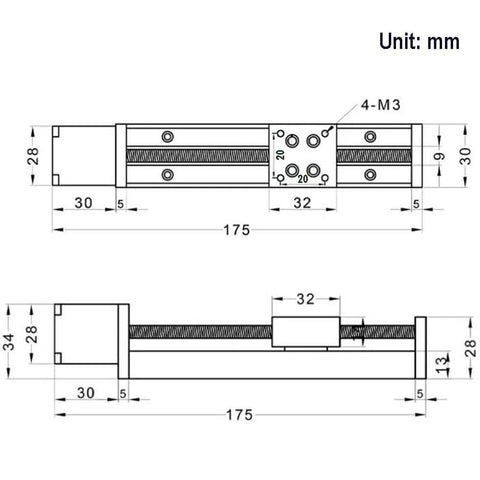

• ✅ Travel: 100 mm effective; total length 176 mm
  ✅ Lead screw: T6x1, diameter 6 mm, lead 1 mm per turn

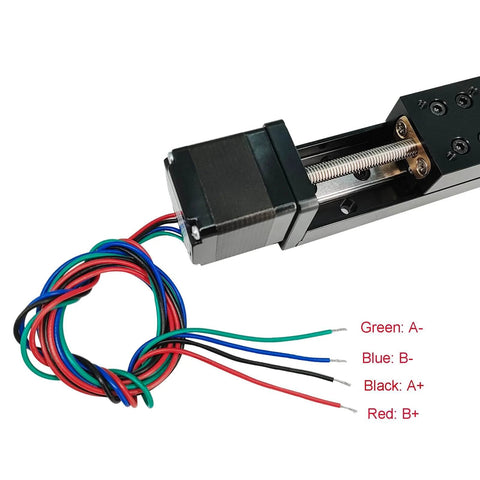

  ✅ Motor: NEMA11 stepper, 1.8° per step, holding torque 6 N cm, current 0.6 A, resistance 5.5 Ω, inductance 3.2 mH, rotor inertia 8 g cm
  ✅ Speed: 0-120 mm/min
  ✅ Repeat positioning accuracy: ±0.05 mm
  ✅ Load capacity: horizontal up to 2.5 kg; vertical up to 1 kg
  ✅ Weight: about 326 g; Package: 1 piece
  ✅ Notes: Please allow 0-1 mm error due to manual measurement

This handy motion unit delivers precise, repeatable positioning for DIY CNC routers, inspection equipment, and lab setups, boosting workflow efficiency.

💡What is a mini linear stage actuator with a T6x1 lead screw used for in DIY CNC routers and precision measurement?

It is a compact motion unit designed to provide precise travel in tight spaces.

• Small footprint ideal for tight spots in DIY CNC routers and precision measurement equipment
• Lead screw type T6x1 provides 1 mm travel per turn for fine control
• NEMA11 stepper motor with 0.6 A current and 1.8° step angle offers straightforward drive with good torque
