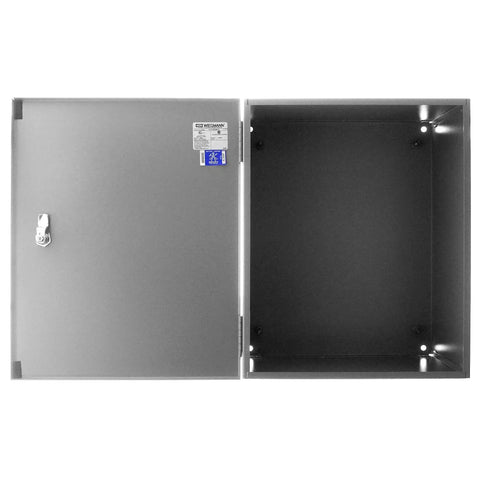

N1C Series NEMA 1 Hinged Door Wall Mount Enclosure Built Tough Steel Medium Panel Not Included 20 By 16 By 8 And Five Eighths Inches ANSI 61 Gray Finish UL CSA Listed Control And Instrumentation Enclosure

NEMA 1 Wall Mount Enclosure with Hinged Door 20x16x8.625
✔️ 20 x 16 x 8.625 in single unit enclosure, 14-ga steel, ANSI 61 gray

The N1C Series NEMA 1 hinged door wall mount enclosure is built from 14-gauge carbon steel and finished in ANSI-61 gray. It's designed for control and instrumentation installations where oil-tight and dust-tight ratings are not required, typically inside industrial facilities, labs, and control rooms.

Width	20 in (508 mm)
Height	16 in (406.4 mm)
Depth	8.625 in (219.1 mm)

✅ 14-ga carbon steel construction
✅ Seam and spot welded body and door
✅ Back mounting holes in cabinet
✅ Collar studs provided for optional back panel
✅ Flush mount quarter-turn style latch on doors
✅ Butt hinges secure the door
✅ Grounding provisions included
✅ UL and CSA listed; ANSI-61 gray finish

💡 What is a NEMA 1 wall mount enclosure used for?

- Handy for indoor control panels and instrumentation - Provides basic protection for electrical components in non-hazardous areas - Ideal for simple control panels in offices, labs, or shop floors - Supports hinged doors for easy access and simple mounting
