NB
NB SM16AJ 16mm Slide Bush Ball Bushings Linear Motion Bearing
$104.68 CAD
$141.31 CADyou save $36.63 CAD
SKU: Kit19471
UPC: 00193019110867
UPC: 00193019110867
Item: SM16AJ Bearing
Type: Linear Slide Bush
Shaft Diameter: 16mm
Number of Ball Circuits: 4
Dynamic Load Rating Cr: 774 N
Type: Linear Slide Bush
Shaft Diameter: 16mm
Number of Ball Circuits: 4
Dynamic Load Rating Cr: 774 N
| SM16AJ Type Clearance Adjustable: Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |

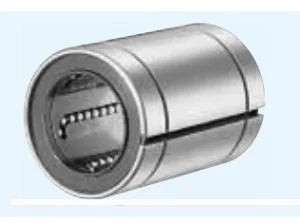

SM16AJ Linear Slide Bush, bearing has clearance adjustable, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Major dimensions | Eccentricity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | h | |||||
| mm | tolerance | mm | tolerance | mm | tolerance | mm | tolerance | ||||
| 16 | 0-9 | 28 | 0-13 | 37 | 0-0.2 | 26.5 | 0-0.2 | 1.6 | 27 | 1.5 | 12 |
