NB

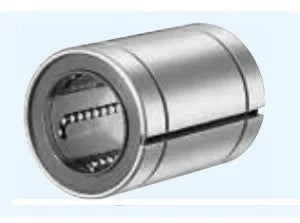

NB SM35UUAJ 35mm Slide Bush Linear Motion Bushings Bearing
$302.64 CAD
$408.56 CADyou save $105.92 CAD
SKU: Kit19496
UPC: 00193019111093
UPC: 00193019111093
Item: SM35UUAJ Bearing
Type: Linear Slide Bush
Shaft Diameter: 35mm
Number of Ball Circuits: 6
Dynamic Load Rating Cr: 1670 N
Type: Linear Slide Bush
Shaft Diameter: 35mm
Number of Ball Circuits: 6
Dynamic Load Rating Cr: 1670 N
| SM35UUAJ Type Seals on Both Sides: Slide Bush Clearance Adjustable Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
SM35UUAJ Linear Slide Bush, bearing is Seals on Both Sides and Clearance Adjustable, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

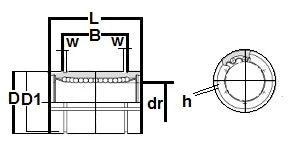

| Major dimensions | Eccentricity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | B | W | D1 | h | |||||
| mm | tolerance | mm | tolerance | mm | tolerance | mm | tolerance | ||||
| 35 | 0-12 | 52 | 0-19 | 70 | 0-0.3 | 49.5 | 0-0.3 | 2.1 | 49 | 2.5 | 20 |
