NB
NB TWA10 NB Ball Bushing Block 5/8"inch Linear Motion
$161.78 CAD
$218.39 CADyou save $56.61 CAD
SKU: TWA10_NB
UPC: 00193019133545
UPC: 00193019133545
Item: TWA10 NB Shaft Support
Type: Nippon Bearing Linear Systems
Shaft diameter: 5/8" inch
Dynamic Load Rating: 1780 N
Static Load Rating: 2224 N
Type: Nippon Bearing Linear Systems
Shaft diameter: 5/8" inch
Dynamic Load Rating: 1780 N
Static Load Rating: 2224 N
| TWA10 NB Pillow Block Slide Unit Nippon Bearing (NB) Linear Systems Made in Japan |
|
TWA10 NB 5/8" Slide Unit Pillow Block (Inch Series), inner diameter(bore)is 5/8" inch dimensions, bearing is a high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

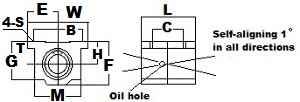

| Major Dimensions | Mounting Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | B | C | S |
| 7/8" | 1-1/4" | 2-1/2" | 1-15/16" | 1-5/8" | 9/32" | 1-7/16" | 1-3/4" | 2-1/8" | 1-1/8" | 3/16" |
