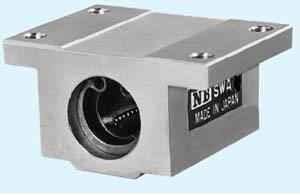

NB TWA16 NB Ball Bushing Block 1"inch Linear Motion Slide Unit
UPC: 00193019133569
Type: Nippon Bearing Linear Systems
Shaft diameter: 1" inch
Dynamic Load Rating: 3781 N
Static Load Rating: 4715 N
TWA16 NB Pillow Block Slide Unit
✔️ 1" Bore Linear Motion Block - Made in Japan
The TWA16 slide unit from Nippon Bearing (NB) is a high-precision pillow block built for 1" shafts in linear motion systems. This inch-series unit features premium-grade linear bushings, ideal for CNC machines, automation rails, and guided systems across U.S. applications. Made in Japan for top-tier accuracy and reliability.
✅ Fits 1" shaft diameter
✅ High-accuracy linear bushing inside
✅ NB brand - Nippon Bearing, trusted for precision
✅ Dynamic load rating: 3781 N
✅ Static load rating: 4715 N
✅ Quantity: One block
✅ Origin: Made in Japan
Dimension Table (Inches):
| h | E | W | L | F | T | G | M | B | C | S |
|---|---|---|---|---|---|---|---|---|---|---|
| 1-3/16" | 1-5/6" | 3-1/4" | 2-13/16" | 2-3/16" | 5/8" | 1-15/16" | 2-3/8" | 2-7/8" | 1-3/4" | 7/32" |
💡 Why use a pillow block linear unit like the TWA16 in automation systems?
It delivers solid shaft support and precise travel for moving parts.
-
Precision-ground bushings reduce vibration and friction
-
Pillow block design offers quick shaft installation and alignment
-
Perfect for CNC tables, robotics, and pick-and-place setups
-
Long-lasting construction from a trusted Japanese brand
If you're building smooth motion into your machines, this block’s a solid pick-grab one now and keep your linear system tight and accurate.
