Nema 14 Stepper Motor 1.8 Degree 2 Phase High Torque 7Ncm Bipolar 4-Wire With 1M Cable Shaft Length 20.5mm Diameter 5mm Ideal For 3D Printers DIY Robots CNC Machines Prototyping And Hobby Projects For Your DIY Rigs

High-Torque Nema 14 Stepper Motor for DIY Rigs

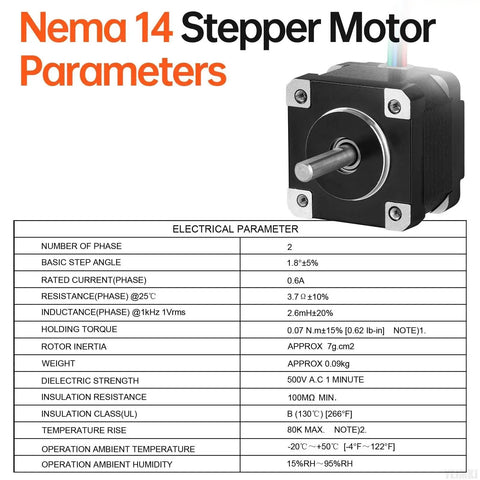

✔️ 1.8° step, 2‑phase, 7 Ncm torque, 0.6 A, 1 m cable, single

The compact Nema 14 pancake motor sits at the heart of many DIY projects, from 3D printers to small CNC machines and hobby robots. Its small footprint fits tight builds and it’s ready to drop into prototyping rigs where precise, reliable motion is a must.

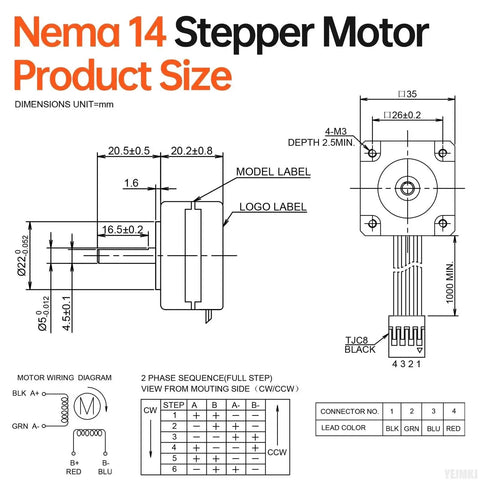

✅ Body size 35x35x20.5 mm (1.38x1.38x0.81 in)
✅ Shaft Ø5 mm (0.197 in), length 20.5±0.5 mm (0.81±0.01 in), D-cut length 16.5 mm (0.65 in)
✅ Holding torque 7 Ncm (9.91 oz·in), Step angle 1.8°
✅ Cable 1 m (39.37 in), 4-wire Black(A+), Green(A-), Red(B+), Blue(B-)
✅ Weight 100 g (0.22 lb)

💡 What is a pillow block bearing used for in DIY projects?

This handy component keeps shafts aligned and supported in compact machines and rigs.

- Supports radial loads and helps keep shafts true in printers, CNCs, and robots - Handy for easy mounting and reliable, steady motion in tight builds - Works well with common bearing types and upgrade options for longer life
