Nema 17 Stepper Motor 2 Phase 1.8 Degree 0.6Nm Beefy Torque Bipolar 4 Wire 48mm Body With 1.2 Ohm Resistance And 2.3 A Current Shaft 24mm By 5mm 1 Meter Cable For 3D Printer CNC Robot DIY Projects

High-torque NEMA 17 2-Phase Stepper for CNC
✔️ 0.6Nm torque, 1.8° step, 42x42x47.2mm body, 1m 4-wire cable, Pack: 1 unit

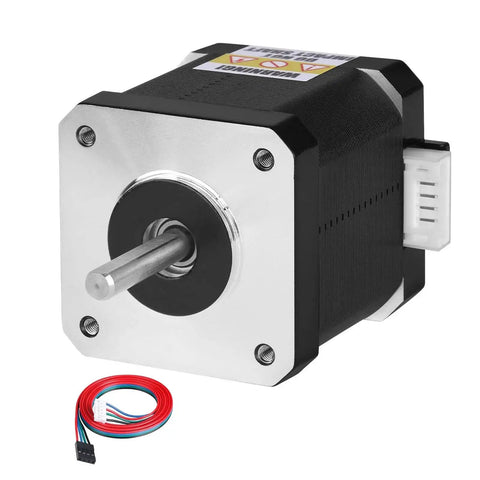

This NEMA 17 two-phase stepper motor is designed for compact drives in 3D printers, CNC machines, and hobby robotics. Its 42x42x47.2 mm footprint fits tight mounts while delivering solid torque and reliable performance. The 1-meter four-wire cable simplifies wiring in tight assemblies.

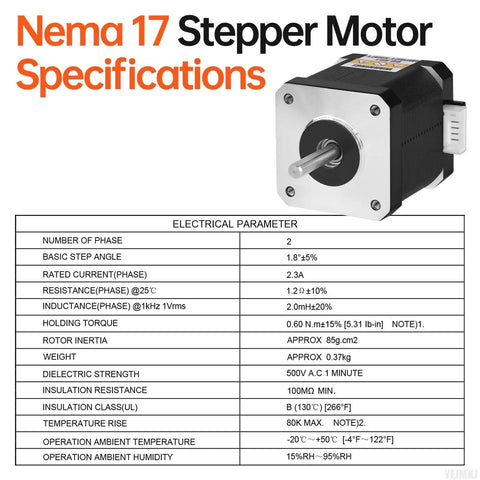

✅ 2 Phase stepper motor with 1.8-degree step angle
✅ Holding torque 0.6 Nm (84.97 oz-in)
✅ Resistance 1.2 Ω, rated current 2.3 A

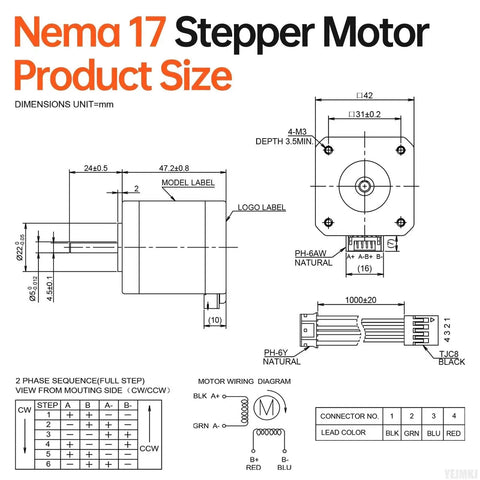

✅ Body size 42x42x47.2 mm; shaft 5 mm, length 24 mm
✅ Cable 1 m, 4-wire: A+ A- B+ B-
✅ Inductance 2.0 mH ±20%

💡 What is a common use for a NEMA 17 two-phase stepper motor in DIY CNC and 3D printer projects?

Handy for precise motion control in compact builds. - Precise positioning for 3D printers and small CNC axes
- Handy in hobby robotics and compact automation tasks
- Reliable torque at low speeds for leadscrews and linear motion systems
