Nema 17 Stepper Motor 5 Pack With 1.8-Degree Step, 2 Phase High Torque 0.16 Nm Bipolar, 4 Wire, 42 By 23 Mm Body, 0.8 A, 3.7 Ohm, Shaft 24 Mm Length, Diameter 5 Mm, Includes 1 Meter Cable For 3D Printer DIY CNC Robot Projects

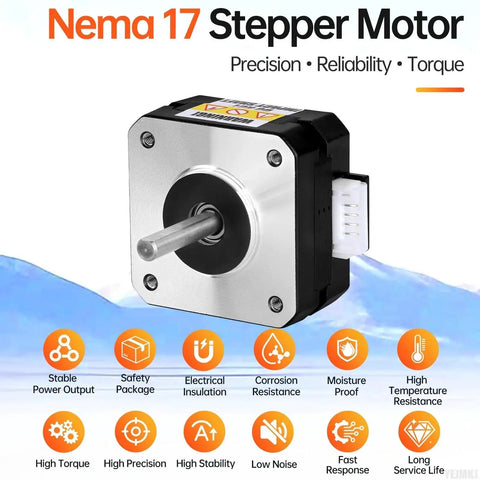

NEMA 17 5-Pack Stepper Motors for Precise Motion
✔️ 2-phase NEMA 17, 0.16 Nm torque, 1 m cable, 24 mm shaft

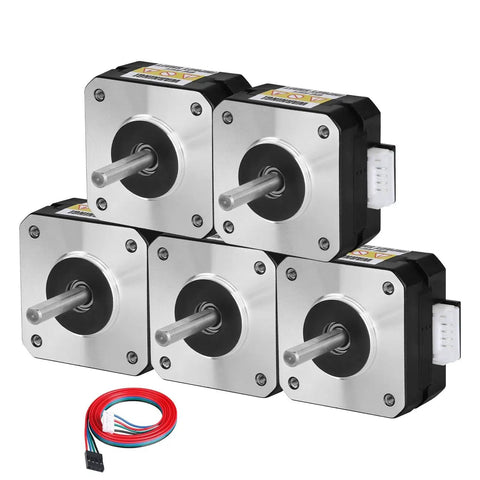

Five high-torque NEMA 17 stepper motors in a compact 42x42x22.5 mm body (1.66x1.66x0.89 in) with 1 m cables. Shaft length 24 mm (0.94 in) and diameter 5 mm (0.20 in). Rated 0.8 A, 3.7 Ω, these motors provide reliable, precise motion for 3D printers, DIY CNCs, and robotics in tight spaces.

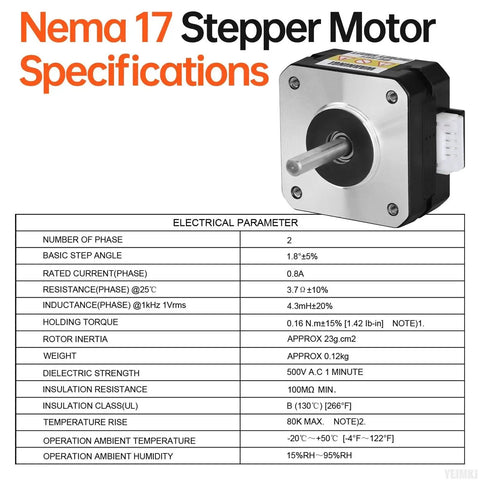

✅ Step angle 1.8° (200 steps/rev)
✅ Holding torque 0.16 Nm (22.66 oz·in)
✅ Rated current 0.8 A, resistance 3.7 Ω
✅ Inductance 4.3 mH ±20%, body size 42x42x22.5 mm (1.66x1.66x0.89 in)

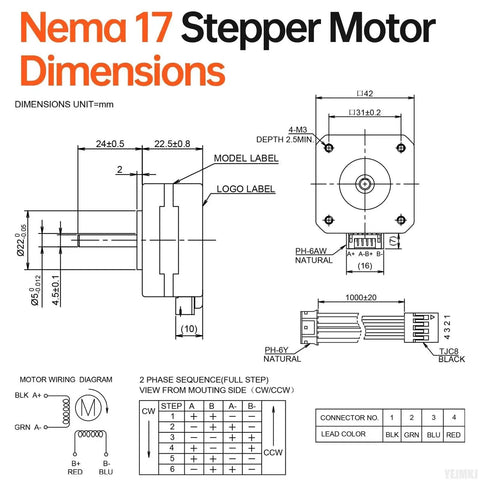

✅ Shaft diameter 5 mm (0.20 in), length 24 mm (0.94 in); 1 m cable with 4-wire colors Black(A+), Green(A-), Red(B+), Blue(B-)
✅ Weight 141 g per motor, 5-pack total weight ~705 g

💡 What is a common use for NEMA 17 stepper motors in DIY projects?

These handy motors provide precise control for small automated tasks and work with standard drivers.

- used in 3D printers for axis movement

- great for DIY CNC machines and robotic projects requiring repeatable steps

- compatible with 4-wire configurations and common stepper drivers
