Nema 17 Stepper Motor With TR8x8 Lead Screw 150mm For 3D Printers CNC Machines And DIY Robots, 1.8 Degree Step Angle, 2 Phase High Torque 0.44Nm 62.31 oz-in Bipolar, 1.7A 2.2 Ohm, 42x39mm 4 Lead With Cable 1m YEJMKJ

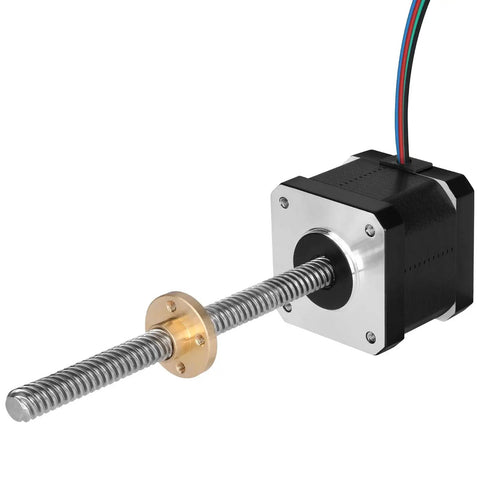

Single Nema 17 Bipolar Stepper with TR8x8 Lead Screw 150mm
✔️ 0.44Nm torque, 1.7A, 1.8° step, 150mm TR8x8 lead with 1m cable

Compact Nema 17 linear actuator style stepper motor with a 150mm TR8x8 lead screw. This single unit two-phase bipolar drive delivers steady torque and precise motion for 3D printers, CNC machines, and DIY robotics projects.

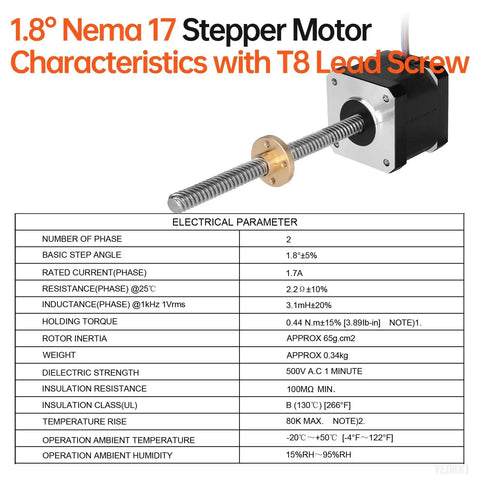

✅ 1.8° step angle (200 steps/rev), 4-lead with 1 m cable
✅ Holding torque 0.44Nm (62.31 oz-in)

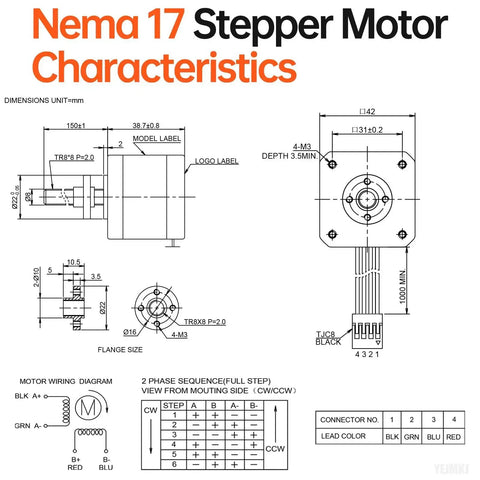

✅ Size 42x42x38.7 mm body, 42x42 mm frame
✅ Lead screw TR8x8 150 mm long, installation holes 31 mm apart
✅ Insulation class UL B (130°C), dielectric strength 500 V, operating -20 to 50°C

💡 What is a Nema 17 stepper motor with TR8x8 lead screw used for? A handy setup for precise linear motion in small machines. - ideal for 3D printers, CNC routers, and DIY robots - precise positioning at low speeds for enhanced print quality - compact form factor fits tight enclosures - compatible with common Nema 17 mounts and TR8x8 lead screws
