Nema 17 Stepper Motor With TR8x8 Lead Screw 200mm For 3D Printer CNC Robot DIY Projects Dope Torque Upgrade High Torque 0.44 Nm 62.31 oz In Bipolar 1.7A 2.2 Ohm 4 Wire Cable 1M 39mm Body 42x42x38.7mm 2 Phase 1.8 Degree

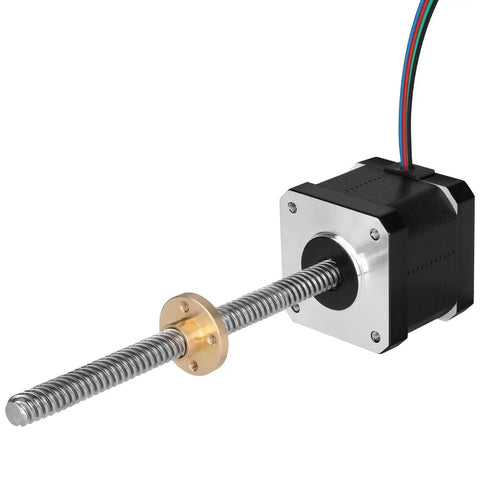

High Torque NEMA 17 Stepper with TR8x8 Lead Screw Kit
✔️ 0.44 Nm torque, 1.7 A current, 200 mm TR8x8 lead screw included

Compact NEMA 17 stepper motor paired with a 200 mm TR8x8 lead screw delivers precise linear motion in compact 3D printers, CNC rigs, and DIY robotics. Its small footprint fits tight spaces while offering strong torque and reliable operation.

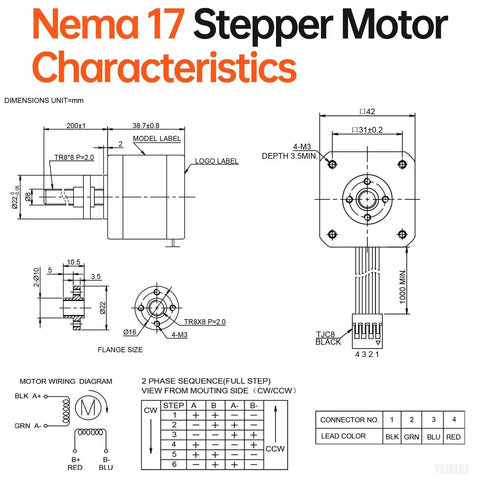

✅ 42x42x38.7 mm (1.66x1.66x1.53 in) body size, weight 355 g, 4-wire harness with A+ A- B+ B- ends 1 m cable
✅ 2-phase bipolar, 1.8° step (200 steps/rev), holding torque 0.44 Nm

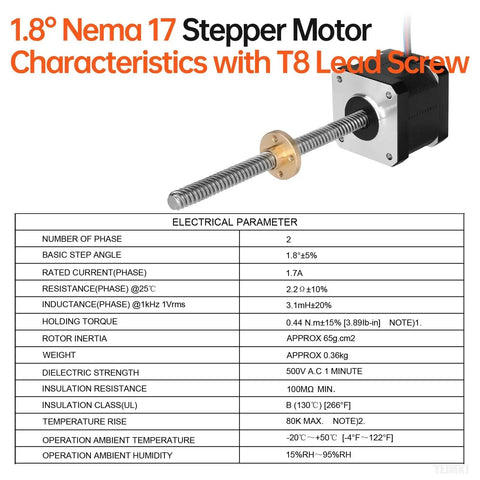

✅ Resistance 2.2 Ω, rated current 1.7 A, inductance ~3.1 mH ±20%
✅ Lead screw TR8x8, 200 mm length, installation hole distance 31 mm

💡 What is a NEMA 17 stepper motor with TR8x8 lead screw used for in hobby CNC and 3D printer projects? This handy combo is designed for precise linear motion in small automation setups. - NEMA 17 stepper motor with TR8x8 lead screw provides precise linear actuation in 3D printers and compact CNC builds - Bipolar 2-phase design with 0.44 Nm holding torque at 1.7 A suits hobby robotics and automation - Includes 1 m cable and 200 mm lead screw, fits 42x42x38.7 mm frames
