Nema 23 Integrated Servo Stepper Motor With Built In Multi Turn Absolute Encoder Closed Loop Servo Motion Controller And Driver Can Bus 2000 RPM Max 1.26 Nm 3.5A 24 48VDC

Single unit NEMA 23 integrated servo with encoder
✔️ 2000 RPM max, 1.26 Nm torque, CAN bus control, built-in encoder

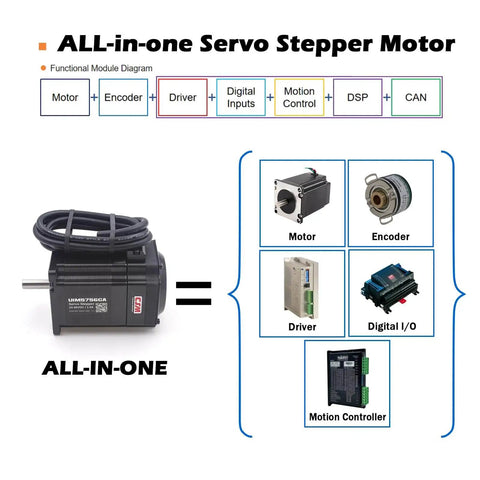

This compact motor combines a built-in multi-turn absolute encoder with a closed-loop motion controller, designed for high precision in automation. It’s commonly used in robotics, CNC machines, and automated warehouses where repeatable positioning and reliable feedback matter.

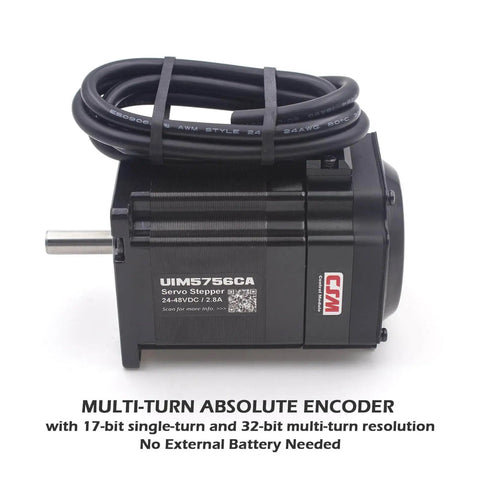

✅ Integrated multi-turn absolute encoder with 17-bit single-turn and 32-bit multi-turn resolutions
✅ CAN interface with strong anti interference for harsh environments
✅ Closed-loop motion with backlash compensation and stall detection

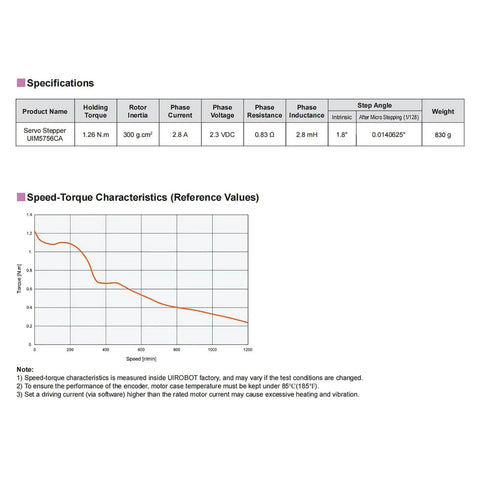

✅ 1.26 Nm holding torque, 1-128 microstepping, 24-48 VDC, current adjustable 1-2.8 A
✅ Max speed 2000 RPM for fast and precise positioning
✅ DSP core with fault tolerance and SDK support in C++/C#

💡 What is a servo motor with integrated encoder used for in precision automation? This handy setup provides reliable feedback and precise motion for automated systems.

- precise positioning in robotics, CNC machines, and automated warehousing
- improved repeatability and reduced backlash through closed-loop feedback
- easy multi-motor coordination over CAN bus networks
