Nema 23 Stepper Motor With 1.8 Degree Step, Beefy Workhorse 2 Phase High Torque 3.5Nm, Bipolar 4-Lead Cable, 57X110MM Footprint, 4.2A, 1.0 Ohm, Shaft 21mm, Shaft Diameter 8MM, 1M Cable, For CNC Mill Lathe 3D Printer DIY Robots YEJMKJ

High Torque NEMA 23 Stepper Motor for CNC Mills and 3D Printers
✔️ 2-Phase high-torque 3.5Nm, 4.2A, 1.0Ω, 1m cable, 57x57mm, single unit

Designed for precise, smooth motion, this NEMA 23 stepper is ideal for hobby CNC mills, 3D printers, laser cutters, and robotics projects where compact size and high torque matter.

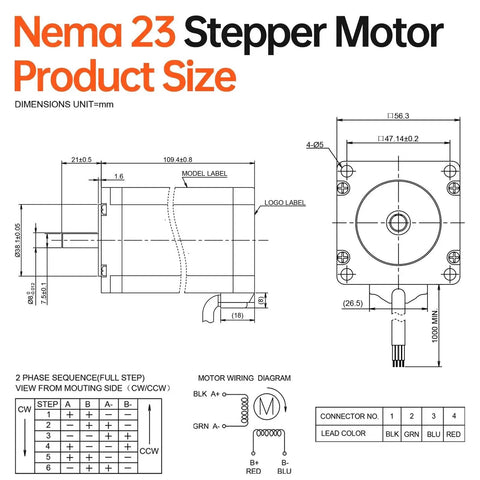

✅ NEMA 23 frame: 57x57x109.4 mm (2.25x2.25x4.31 in) body
✅ Holding torque: 3.5 Nm (495.64 oz-in)
✅ Rated current: 4.2 A, coil resistance 1.0 Ω
✅ Inductance: 4.0 mH ±20%
✅ Shaft Ø8 mm, 21 mm length, D-cut 21 mm
✅ Cable: 1 m, 4-lead with A+ A- B+ B-
✅ Weight: 1664 g
✅ Mounting: 47 mm hole spacing on 57 mm frame

💡 What is a NEMA 23 stepper motor typically used for in hobby CNC and 3D printing? In short, handy for precise positioning and reliable control.
- For desktop CNC mills, 3D printers, and robotics.
- Works with standard drivers to deliver consistent steps and torque.
- Great for repeatable motion and easy upgrades.💡
