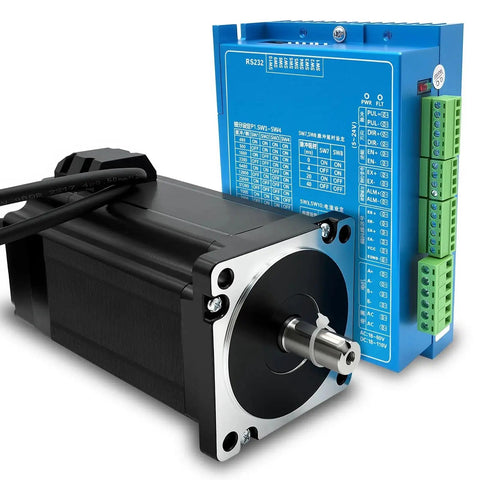

Nema 34 Closed Loop Stepper Motor Kit With 8.5Nm Torque And 1000 Line Encoder For CNC Milling And Engraving, Includes DSP Driver, Debug Cable, And Three Meter Motor Encoder Cables, Power Options 18-110V DC Or 18-80VAC, Pro Grade Precision Motion
UPC: 00193019690789
✔️ 8.5Nm torque, 1000-line encoder, DSP driver, 3m cables
This pro-grade NEMA 34 closed-loop stepper motor kit is designed for CNC milling, engraving, and precision motion tasks. It pairs an 8.5 Nm motor with a DSP closed-loop driver to boost accuracy and reliability in demanding setups.

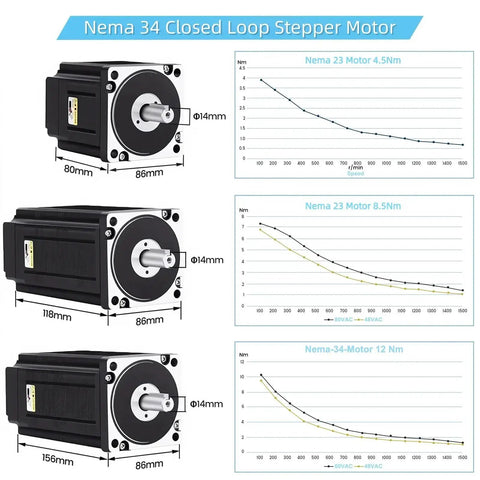

✅ Holding torque 8.5 Nm (850 Ncm); Size 86x86x118 mm (3.38x3.38x4.64 in)
✅ Encoder lines 1000 for precise feedback

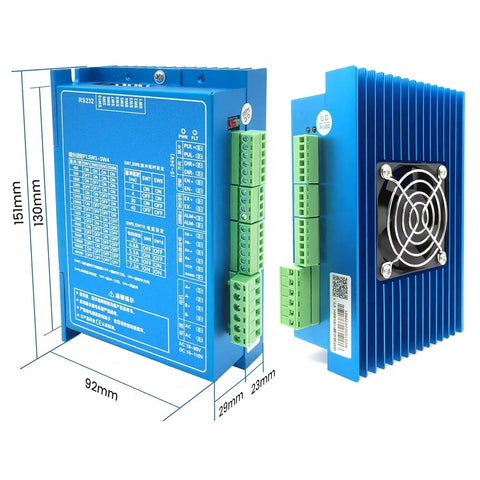

✅ DSP closed-loop driver supports up to 8 A peak current
✅ Input voltage 20-80 VAC / 30-110 V DC; micro-stepping 200-25200 ppr
✅ Includes 3 m motor and encoder extension cables plus debugging cable
✅ Forced air cooling for stable operation

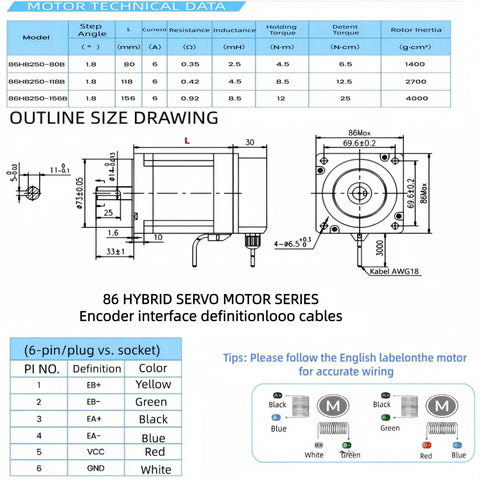

| Holding torque | 8.5 Nm |
| Size | 86x86x118 mm (3.38x3.38x4.64 in) |
| Encoder lines | 1000 |
| Current | 4 A |
| Inductance | 4.5 mH |
| Resistance | 0.45 Ω |
💡 What is a closed-loop stepper kit used for in CNC milling and engraving? This handy system uses encoder feedback to correct motion and improve accuracy. - It is handy for CNC milling, engraving, and small automation tasks - It prevents missed steps under load and maintains precise positioning - It provides smoother torque and improved repeatability in production runs
